UMD0-01 Lookr Quick Set Up Manual

Modified on Mon, 6 May at 7:50 PM

Learning Tips

● How to download the app for media box / smartTV / iPad

● How to bind the device

● How to upload content & save template

● How to apply to the device

STEP 1.

Download the app for media box / smartTV / iPad

1. If you're using a smart TV or any device with Google, go to the GooglePlay store and search: Lookr Digital Signage by Kabob & install

2. If you're using a media player ( Set-up box / Windows laptop ), get the app file from the web: cloud.kabob.io

Click APPS
Click Lookr Digital Signage

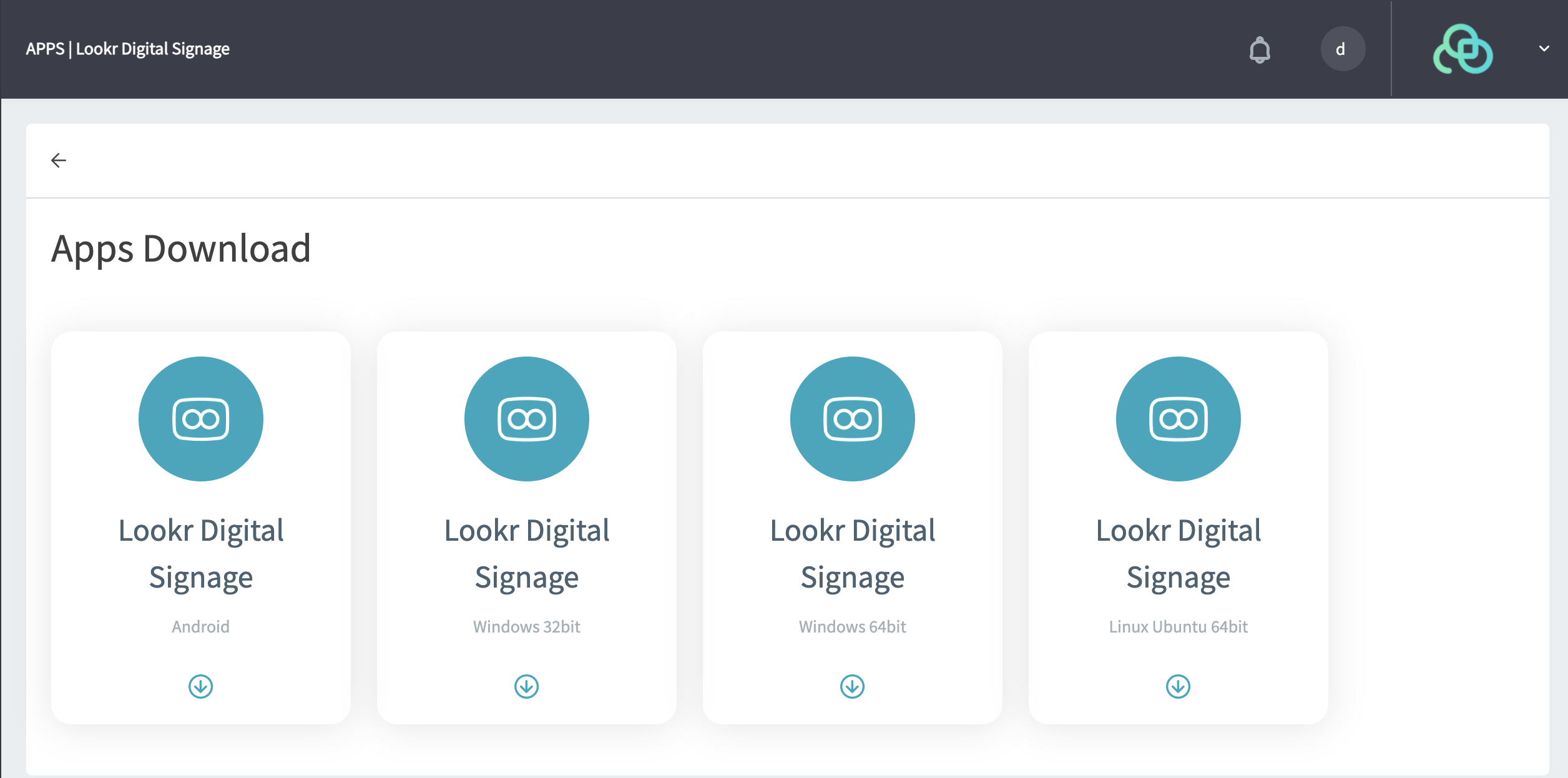

Click Apps Download

3. Choose the OS types that match your device

STEP 2.

Bind account & device

Device side

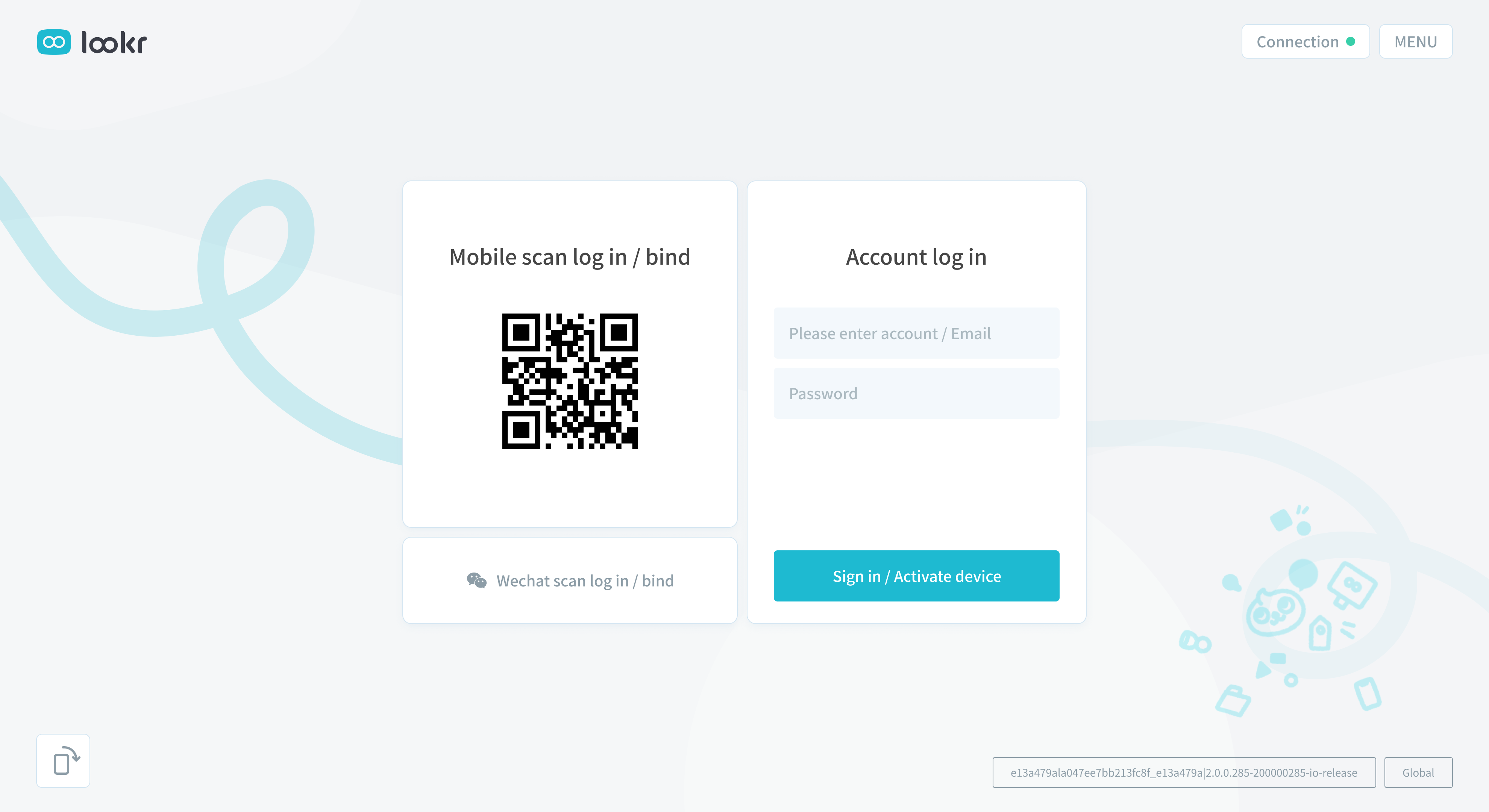

Enter the account & password on the device side

Web console side

1. Enter the Lookr console with the same account & password

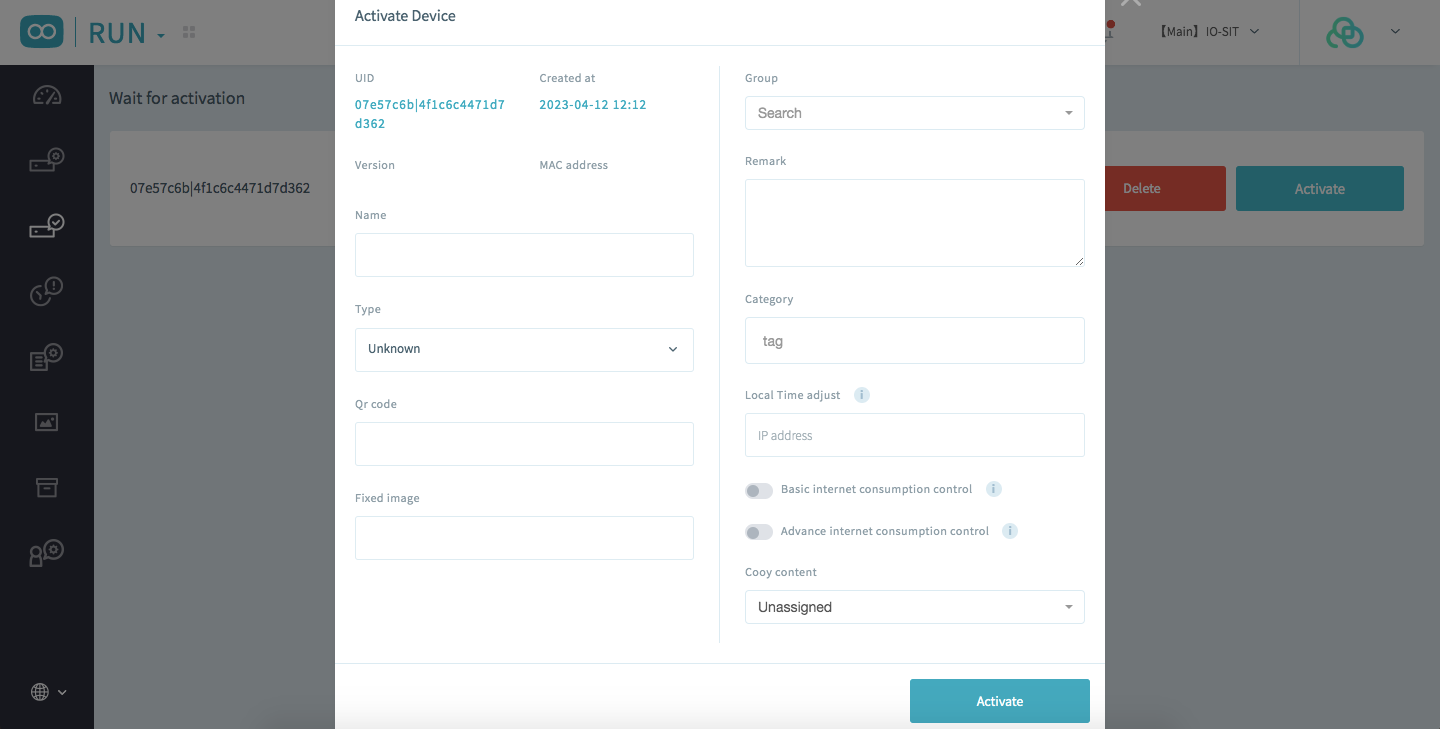

2. Click on the Activation page on the left

3. Click "Activation"

4. Name this device

5. Click "Active" then done

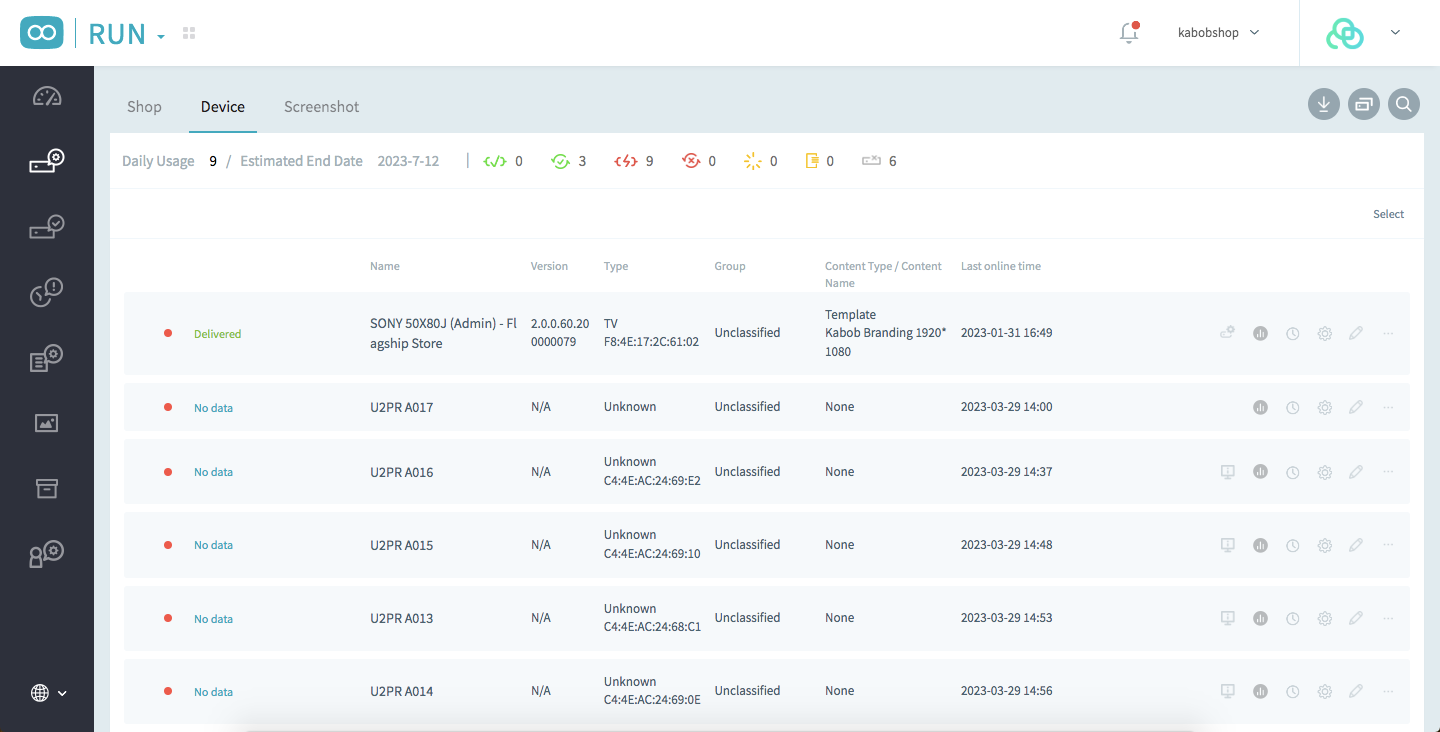

Activate device will show on the Control Center

STEP 3.

Upload content

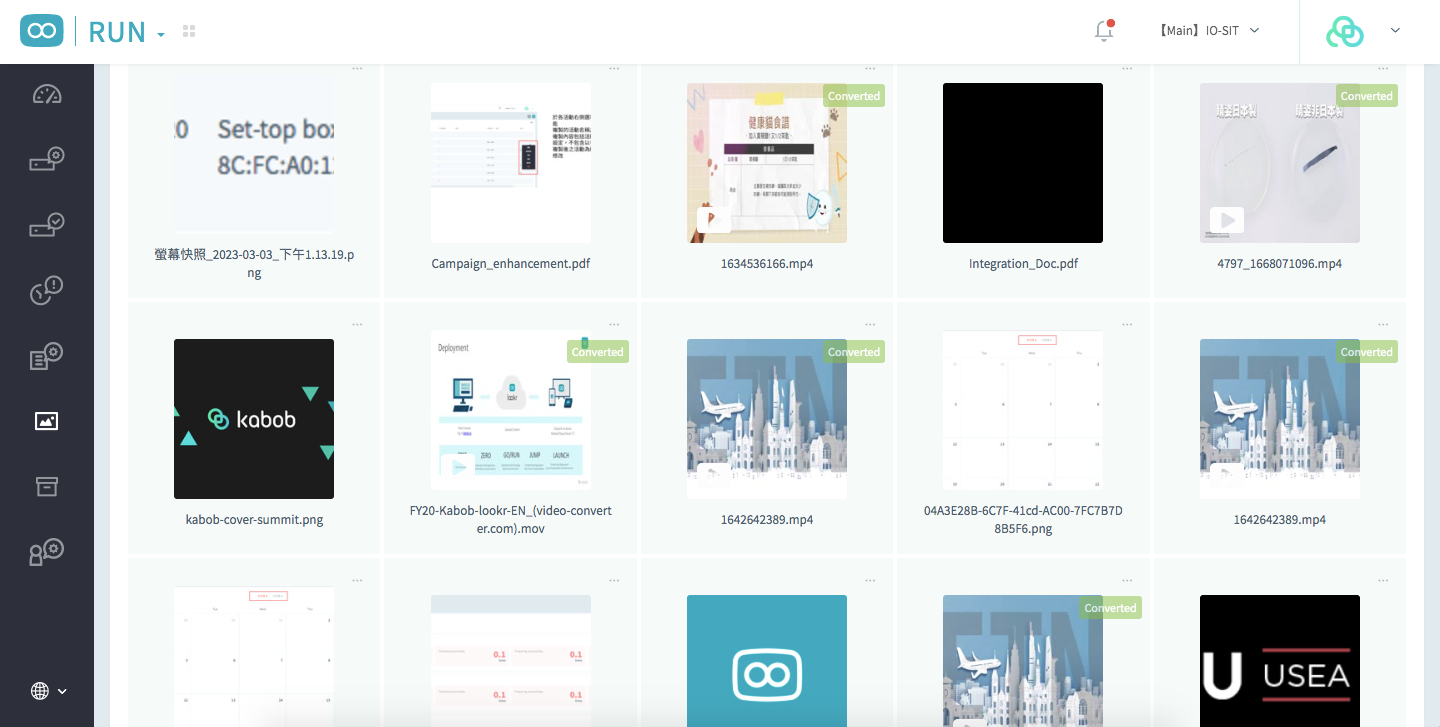

Upload content to Media Management

1. Enter Media management

2. Create a folder for management ( optional )

1. Click Add file to upload content from your computer

2. Video files need to be converted by the system due to applicable to the app, please wait for 5 minutes

Note: File limitation

MP4 300 MB / File

JPG 5 MB / File

PNG 12 MB / File

GIF 25 MB / File

PDF 50 MB / File

STEP 4.

Create template

a. Enter "Templates"

b. Create a folder for management or click the"+" icon to create a new template

1. More to rename/copy/move/delete

2. Click the center of a template to enter the edit page

Edit template

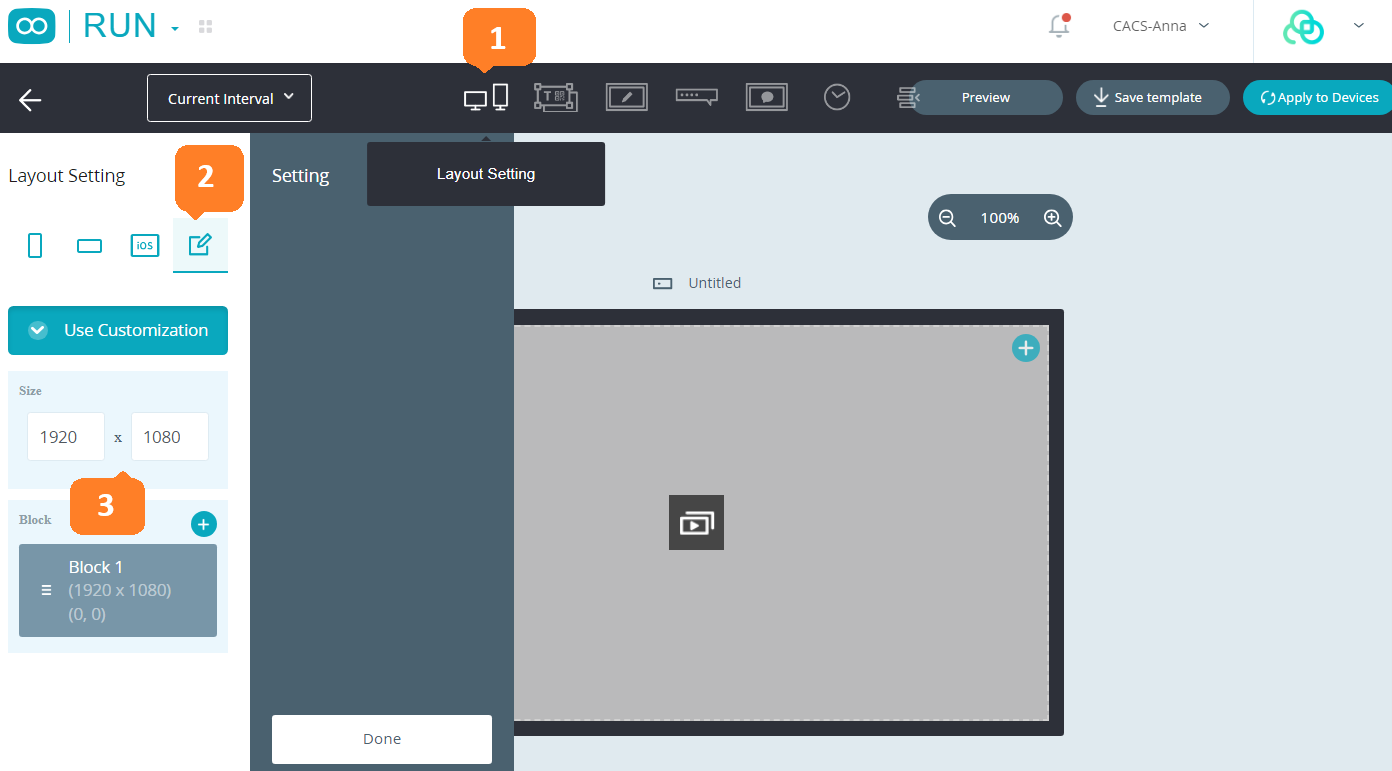

1. Click the Layout setting to find a suitable one or use the customization layout

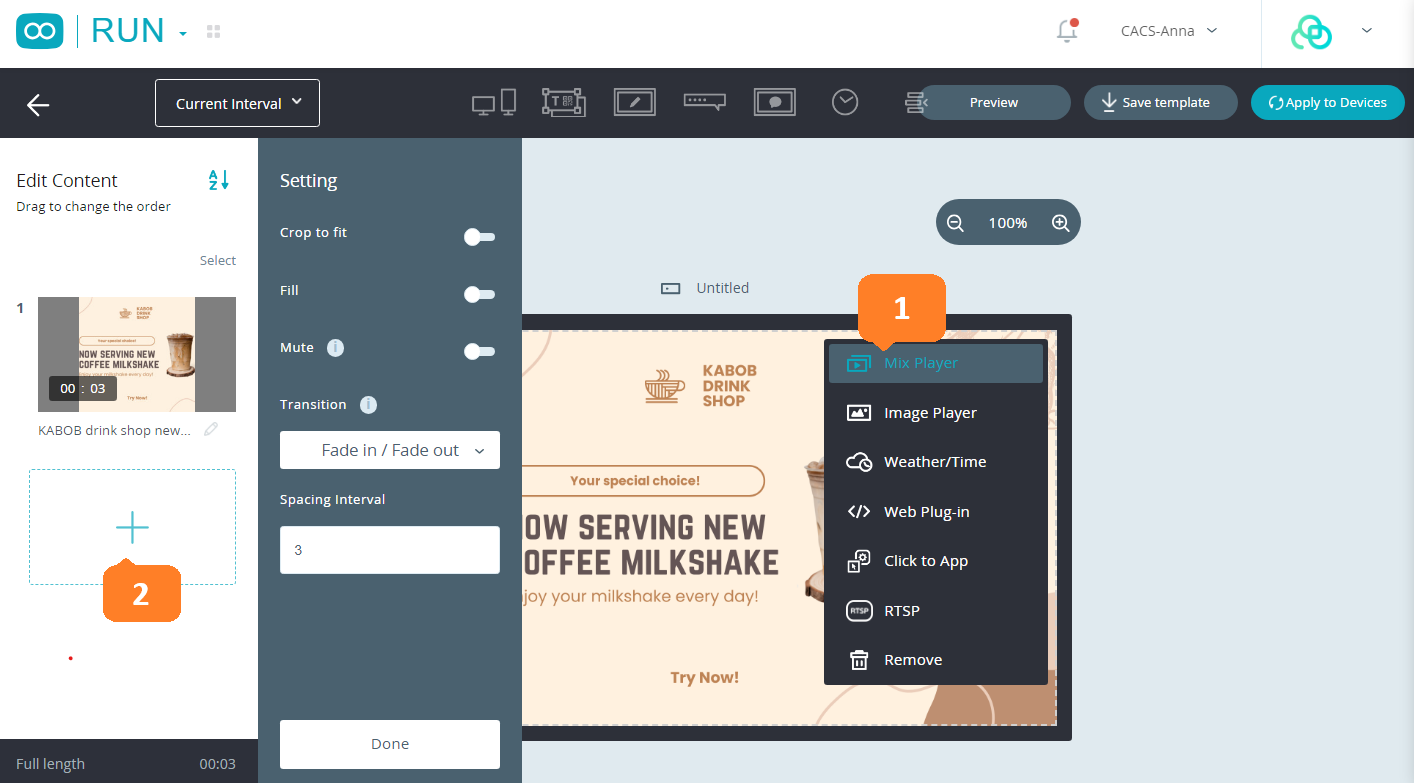

1. Hover to Blue "+" icon on the screen and select Mix Player to input files

2. Click the Plus icon on the right side to upload files

3. Media management will popup (show everything updated in Media management )

4. Select the files you want to input

5. Click OK to complete

Ready to apply content

Click Save template to keep all changes

STEP 5.

Apply to device

Method 1. Apply from Template

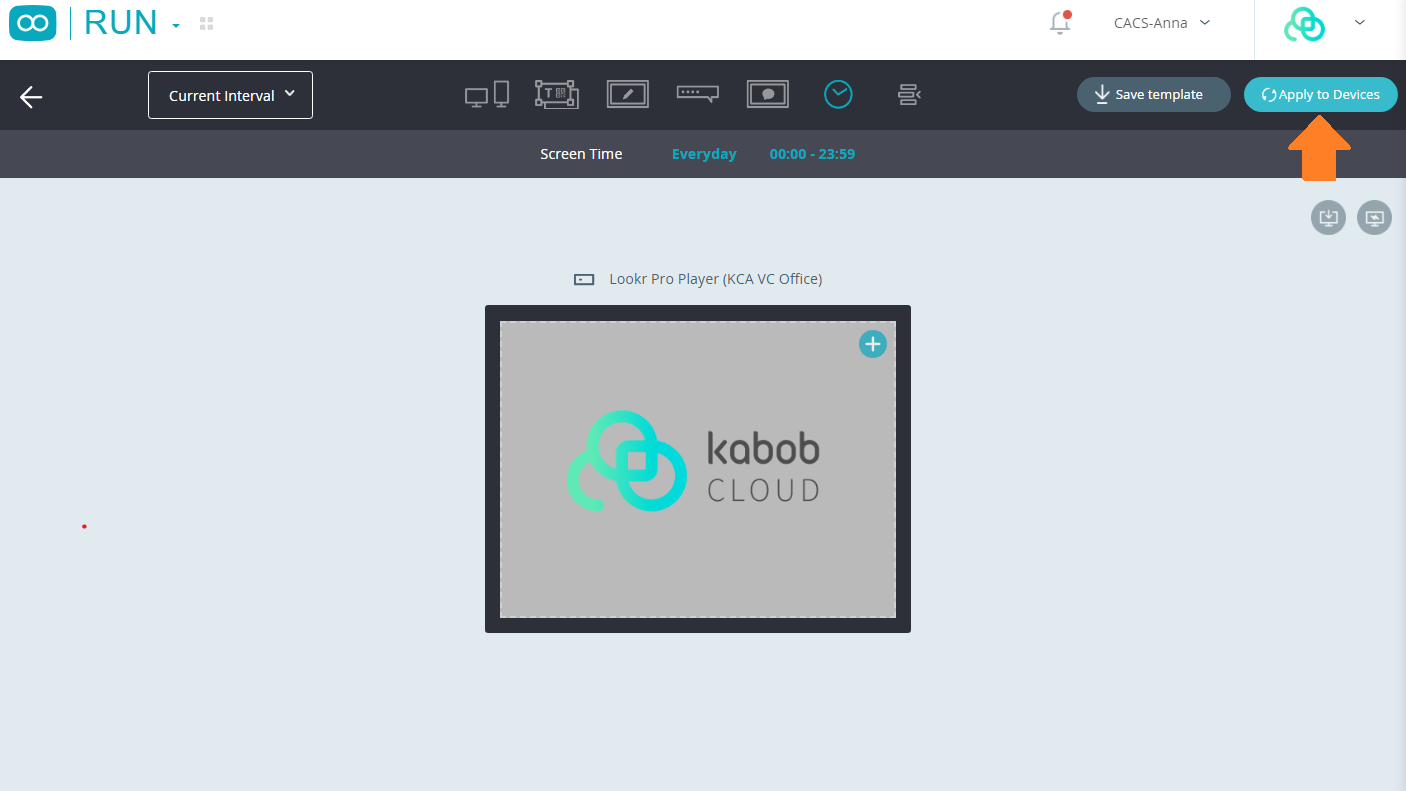

Step 1- Click "Apply to Device" in the top-right corner of the template edit page

Step 2- Select the devices ( Selected devices will have the same content )

Method 2. Apply from the Device List

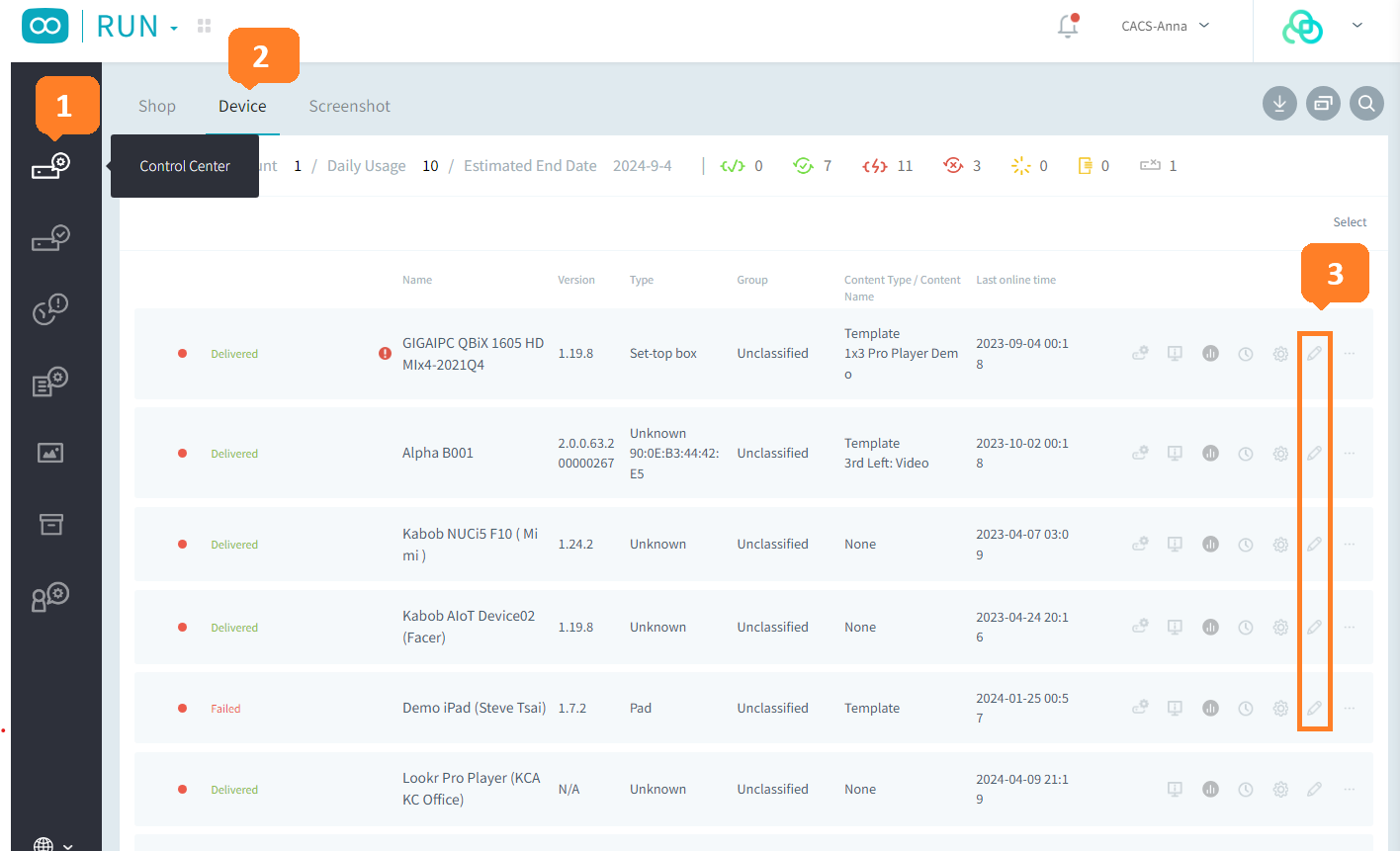

1. Enter "Control Center"

2. Click " Device"

3. Click the Edit icon on the right of the device list

Click the "Load from template" icon on the right

1. Template management will popup ( shows everything in Template management )

2. Select one to load to this edit page

You'll get the same setup as the loaded template and click Apply to device with the same method
