UMB0-01 Device Set Up - Google Chrome Cast

Modified on Tue, 7 May at 5:58 PM

This is a manual for Lookr APK installation on Chromecast with a Google TV device

STEP 1.

Power & Hardware Connection Set Up

Contains Chromecast x1, remote controller x1, power adaptor x1, power cable x1, controller battery x2

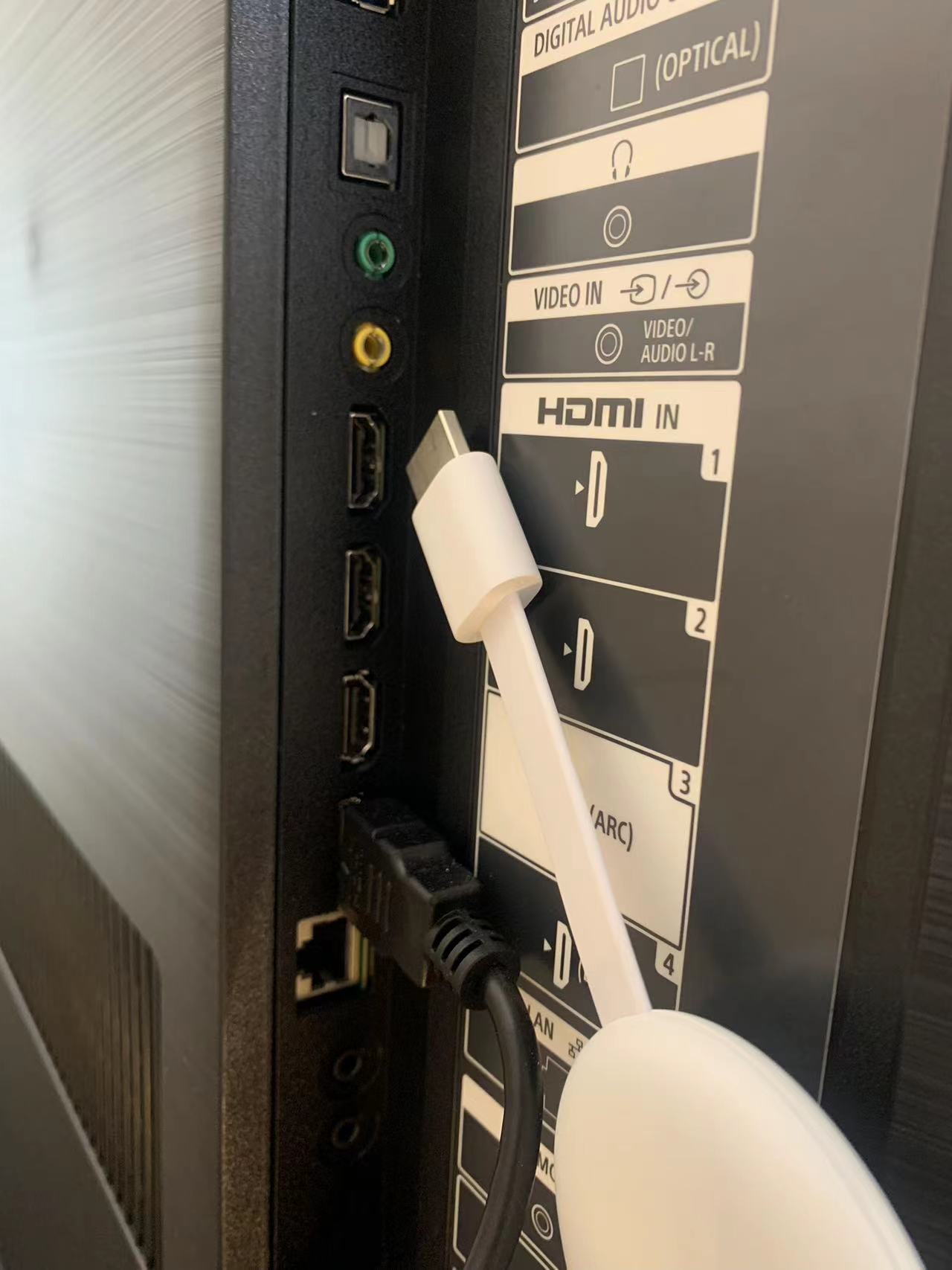

Step 1 - Connect Chromecast to TV/screen

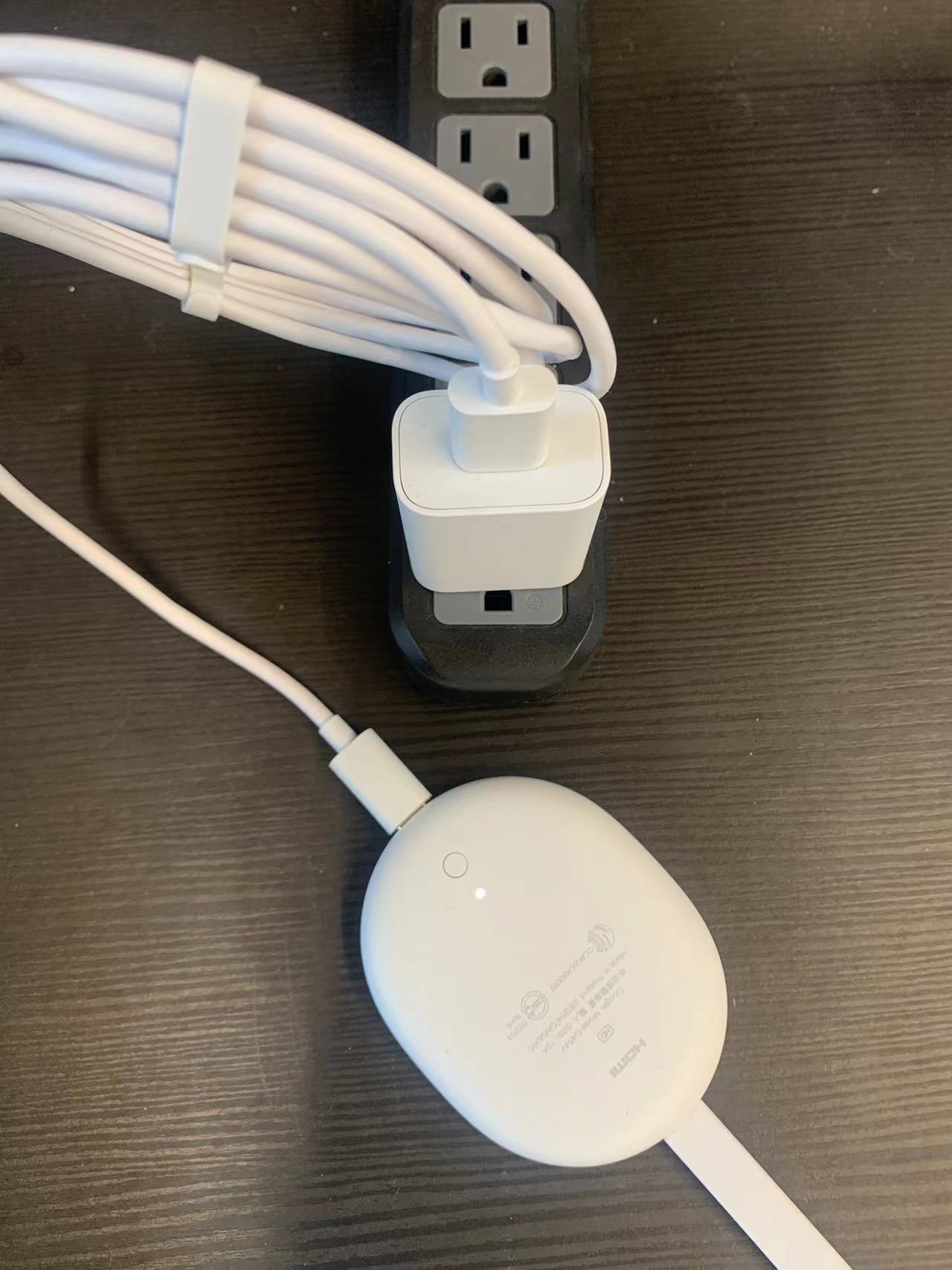

Step 2 - Connect the power, and Chromecast will auto-start

Note: Check the hardware connection or TV signal source if the screen shows "No signal"

Startup

Follow the steps of Chormecast setup

Step 1 - Bind controller with Chromecast

Step 2 - Select Language ( Able to change this afterward)

( Optional ) Scan QRCode for Google Home. Select "Set up on TV instead" to skip

Step 3 - Connect to network

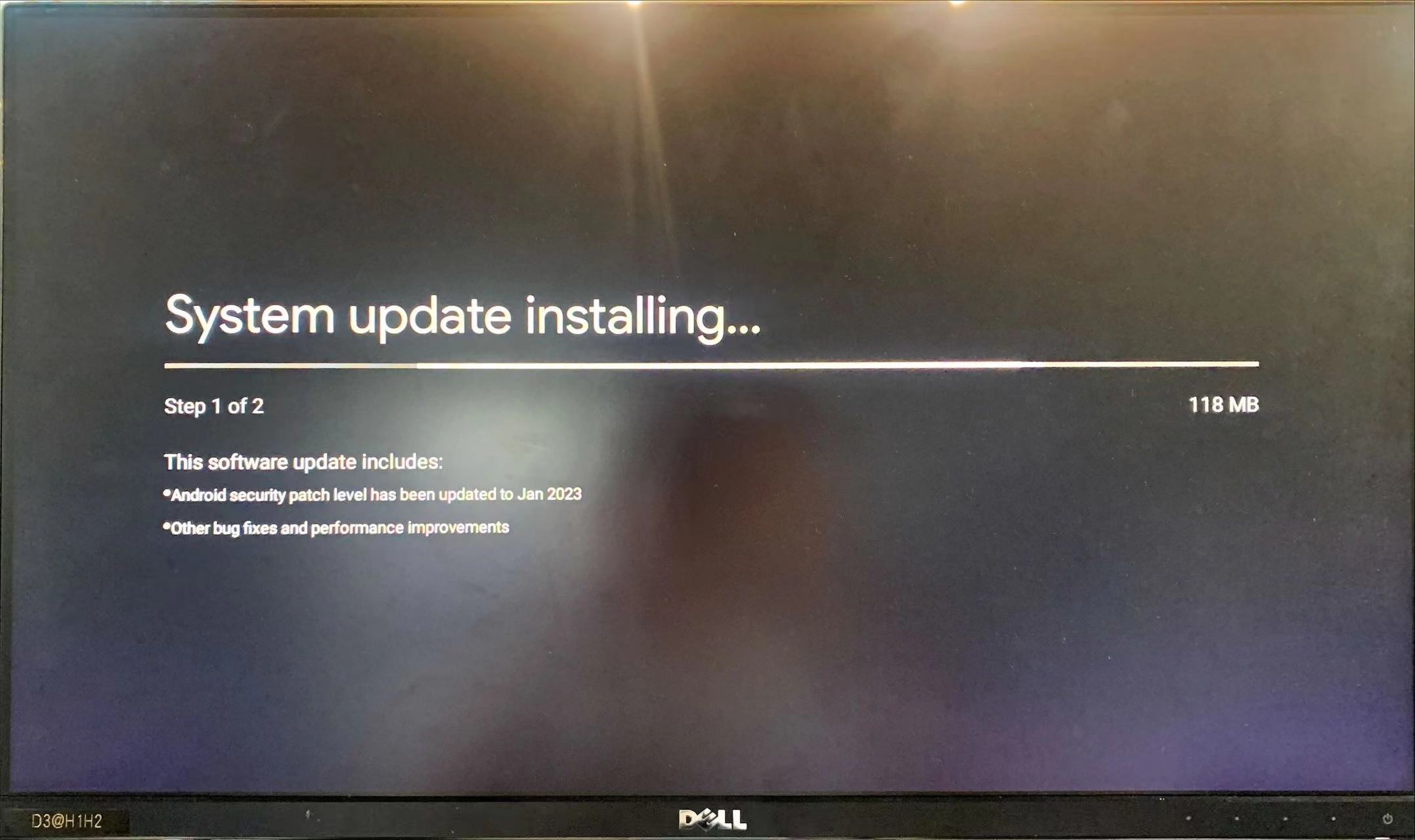

Step 4 - The system will auto-start to run the update for a few minutes

Step 5 - After updated, click Continue

Step 6 - Sign in with Google Email

Step 7 - Allow Google to search across all your apps ( Able to change this afterward)

Step 8 - Set up the controller for advanced control, the system will install build-in apps at the same time ( Able to change this afterward)

Step 9 - Chromecast start-up completed

STEP 2.

Install The Lookr app Via The Google Store

Note: Due to Google TV policy, GooglePlay app can't be searched directly. Following are the steps to find the Lookr app and install

Step 1 - Use the controller to the top right "Setting" icon

Step 2 - Find "Apps"

Step 3 - Find "Google Play Store"

Step 4 - Search for "Lookr Digital Signage"

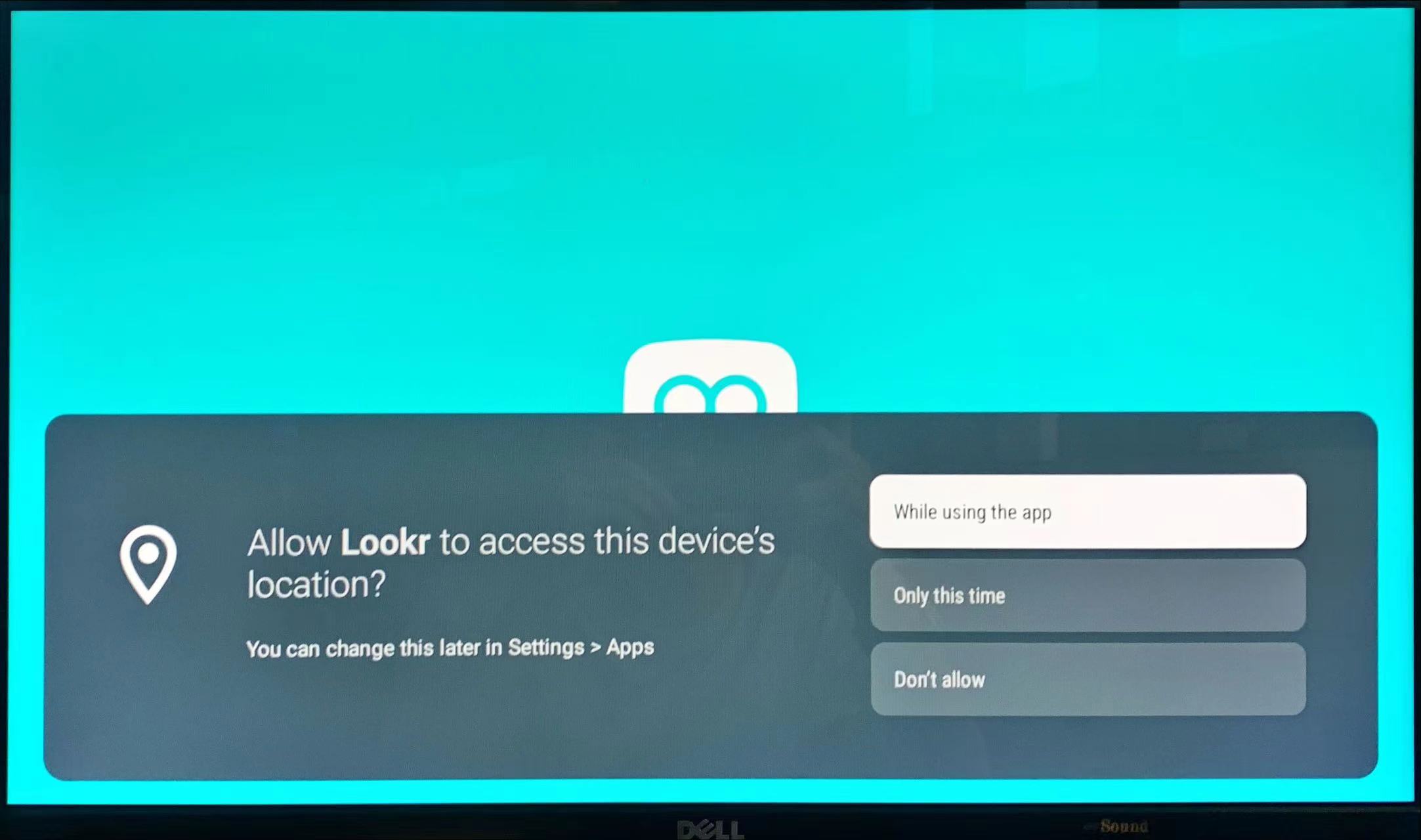

Step 5 - Allow Lookr to access the device's location

Step 6 - Allow Lookr to access photos and media

Step 7 - Login in with your Kabob account

STEP 3.

Auto Launch Setup

Note: Due to Android policy, apk isn't allowed to change Android level settings. The following are the manual steps to auto-launch the Lookr app once Chromecast is turned on.

Step 1 - Find Settings

Step 2 - Find Apps

Step 3 - Find "Special app access"

Step 4 - Find "Display over other apps"

Step 5 - Find "Lookr" and enable the switch like the below image

After this setting, you may try to reboot the device power and make sure the Lookr app auto-appears.

If not, please double-check the steps above or contact our sales to assist.
