UMD1-82 Multi-Screen - Scene Content Editing

Modified on Mon, 29 Apr at 6:19 PM

Scene Content Editing

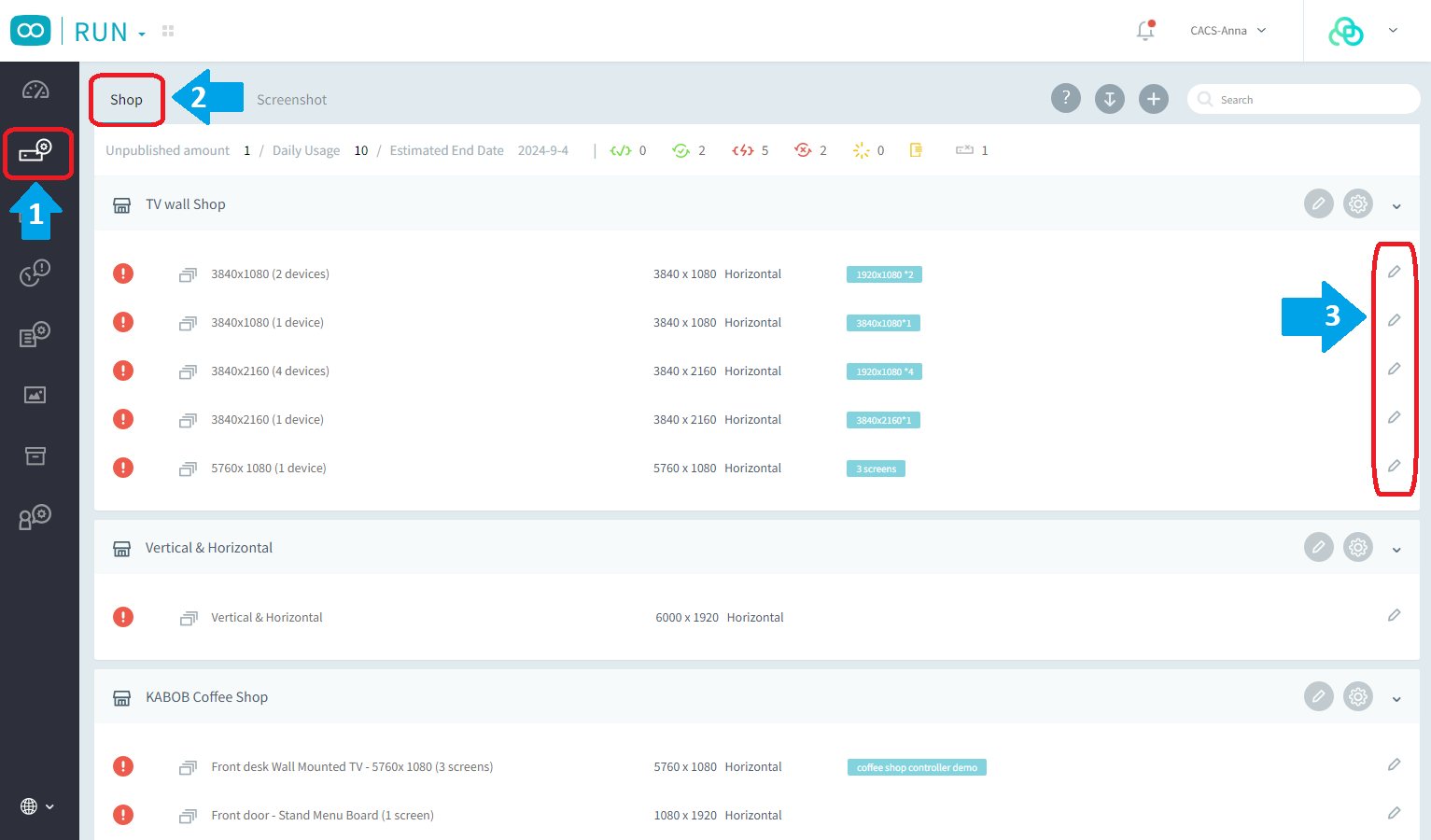

1. Click " Control Center"

2. Click "Shop"

3. Click "Edit" on the specific store's screen you want to edit

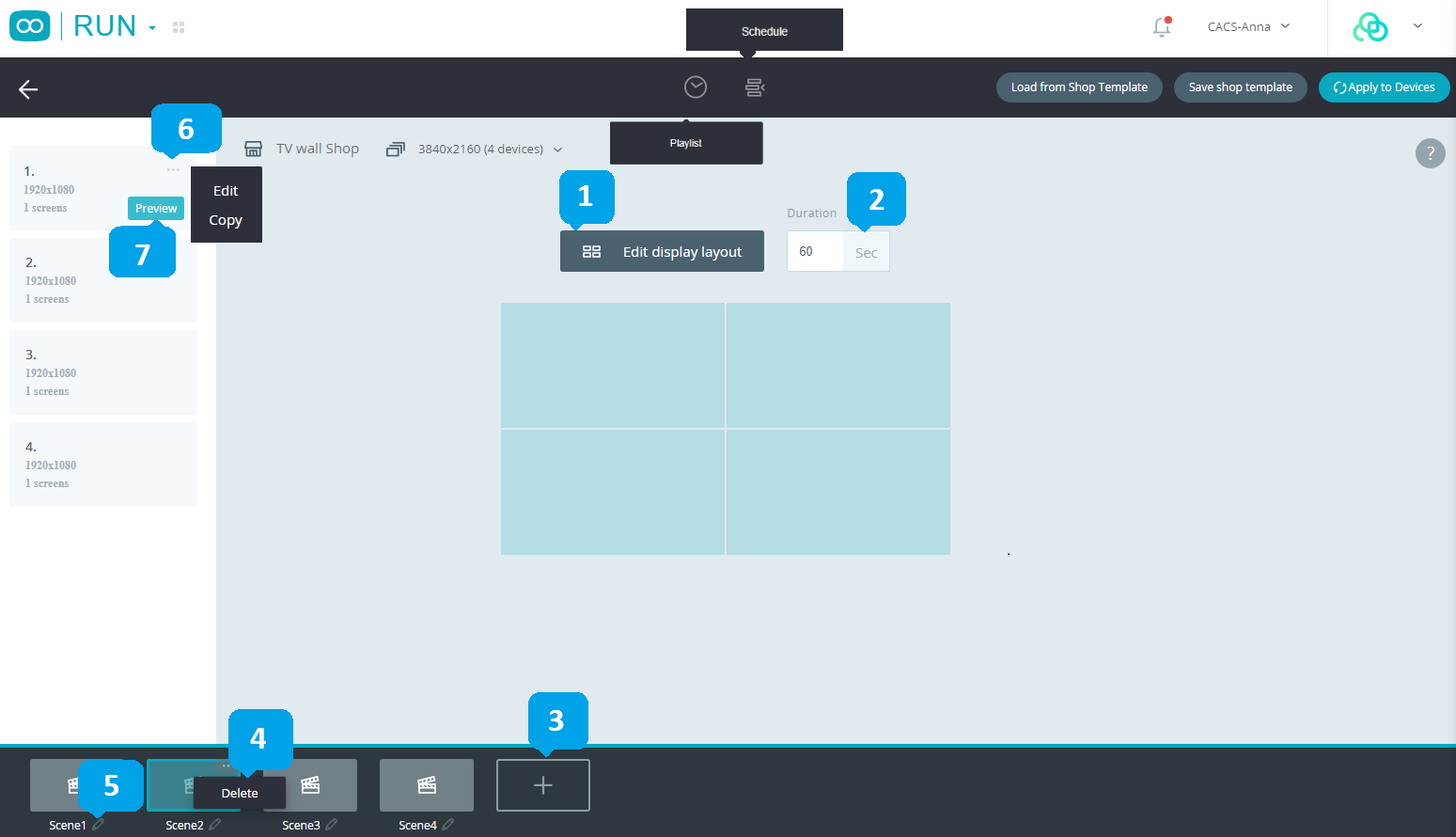

1. Edit Display Layout: Perform more detailed editing for the selected screens

2. Duration: The duration in seconds for the template's presentation

3. Add Scene: Create different scenes to place individual content and adjust their durations to customize the time each scene is presented

4. "..." Options: Delete the specific scene

5. Rename: Rename the scene to facilitate identification

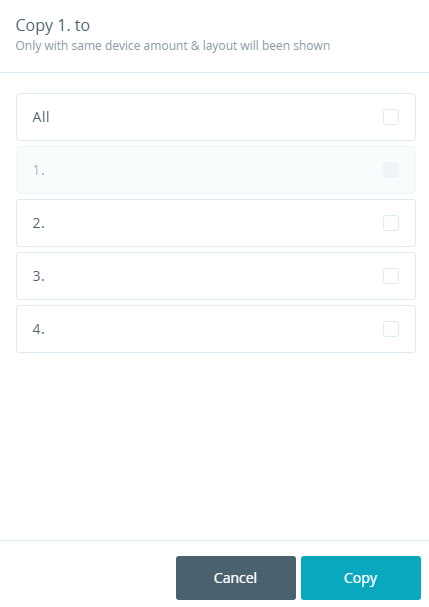

6. "..." Options: Edit the scene's content or copy the content of the scene to other scenes. As shown in the diagram below, you can check the screens where you want to copy the content

7. Preview: Allows previewing the content that will be displayed on the screen after settings are configured

6. "..." options- Copy the content

Edit Display Layout

- Combine: Select several styles to be merged, click "Combine", and then click "Done" to merge the selected styles

- Separate: Select the pattern to be separated, click "Separate", and then click "Done" to separate the selected pattern

※If the number in the thick frame is the same, it means that it is a combined version

Content Settings In A Single Scene

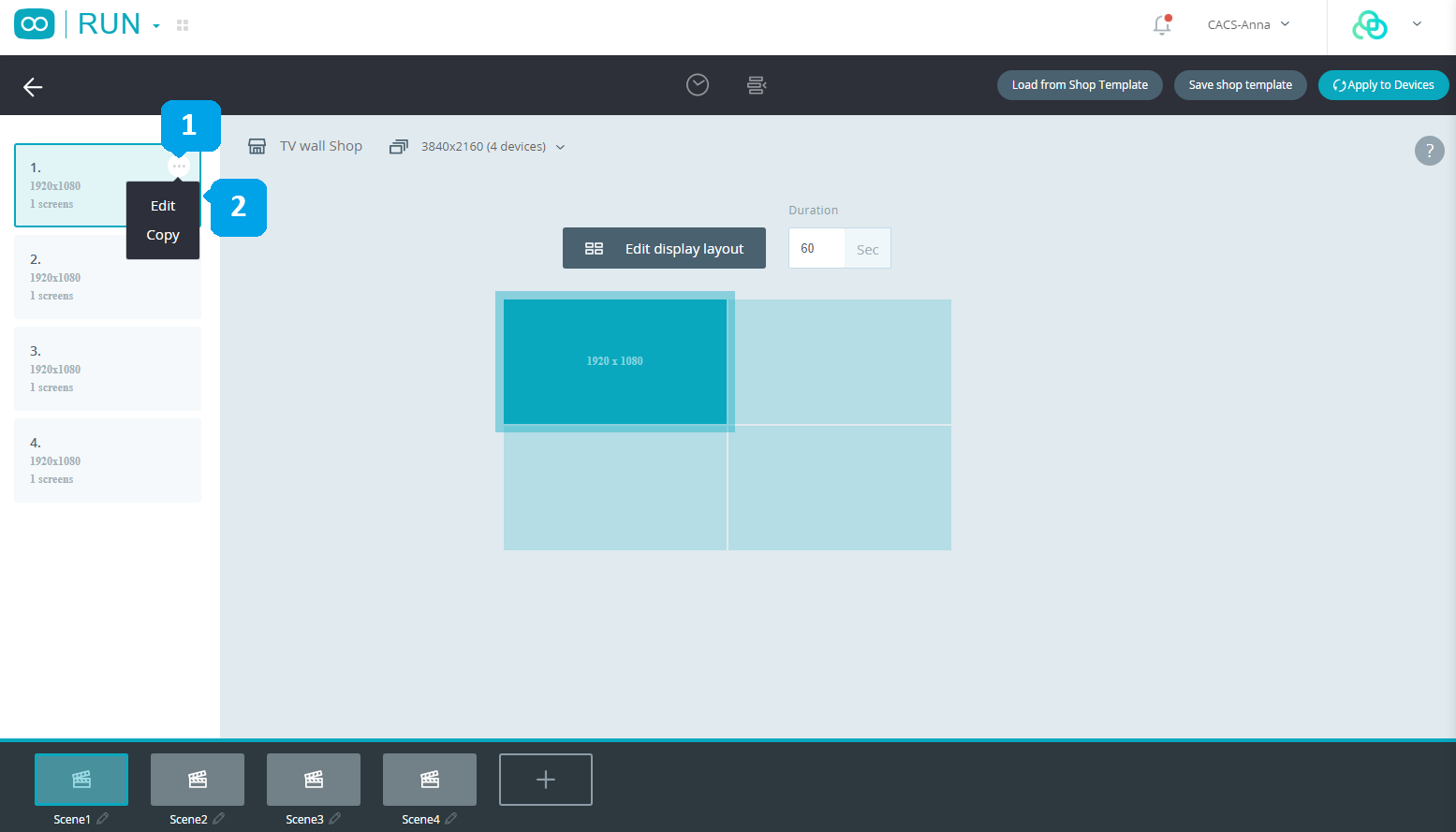

1. Click "..." in the upper right corner of the specific screen to be edited to place

2. Click "Edit" the content for that specific format

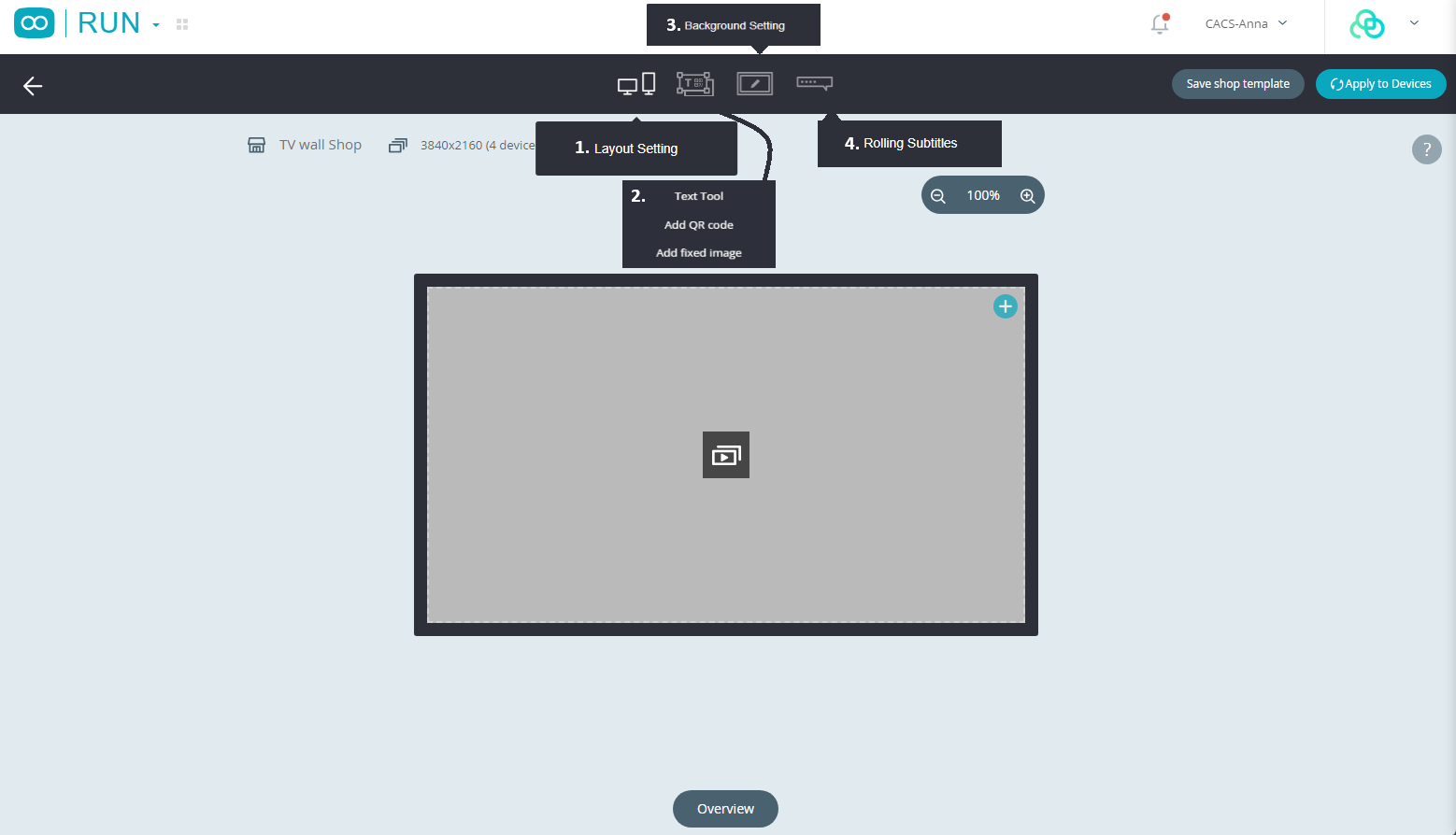

1. Layout Setting: set the content and blocks of the layout

2. "Text tool", "Insert QR code", "Insert floating image"

3. Background Setting: You can select the base color of the layout or upload an image as the base image

4. Rolling Subtitles: You can choose whether to set rolling subtitles for this version and edit its style

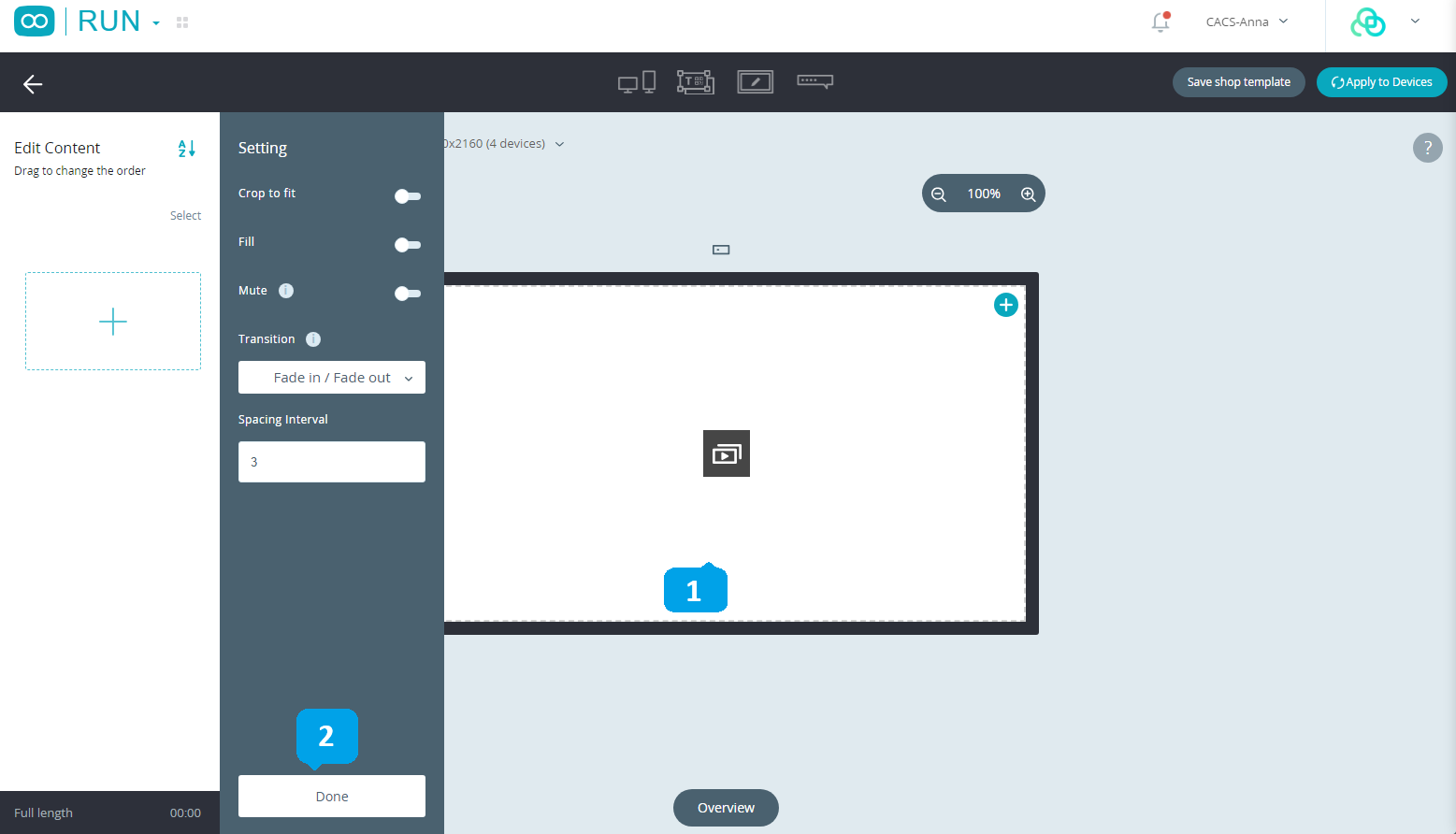

Click the template to edit the content, and click "Done" after editing

After editing

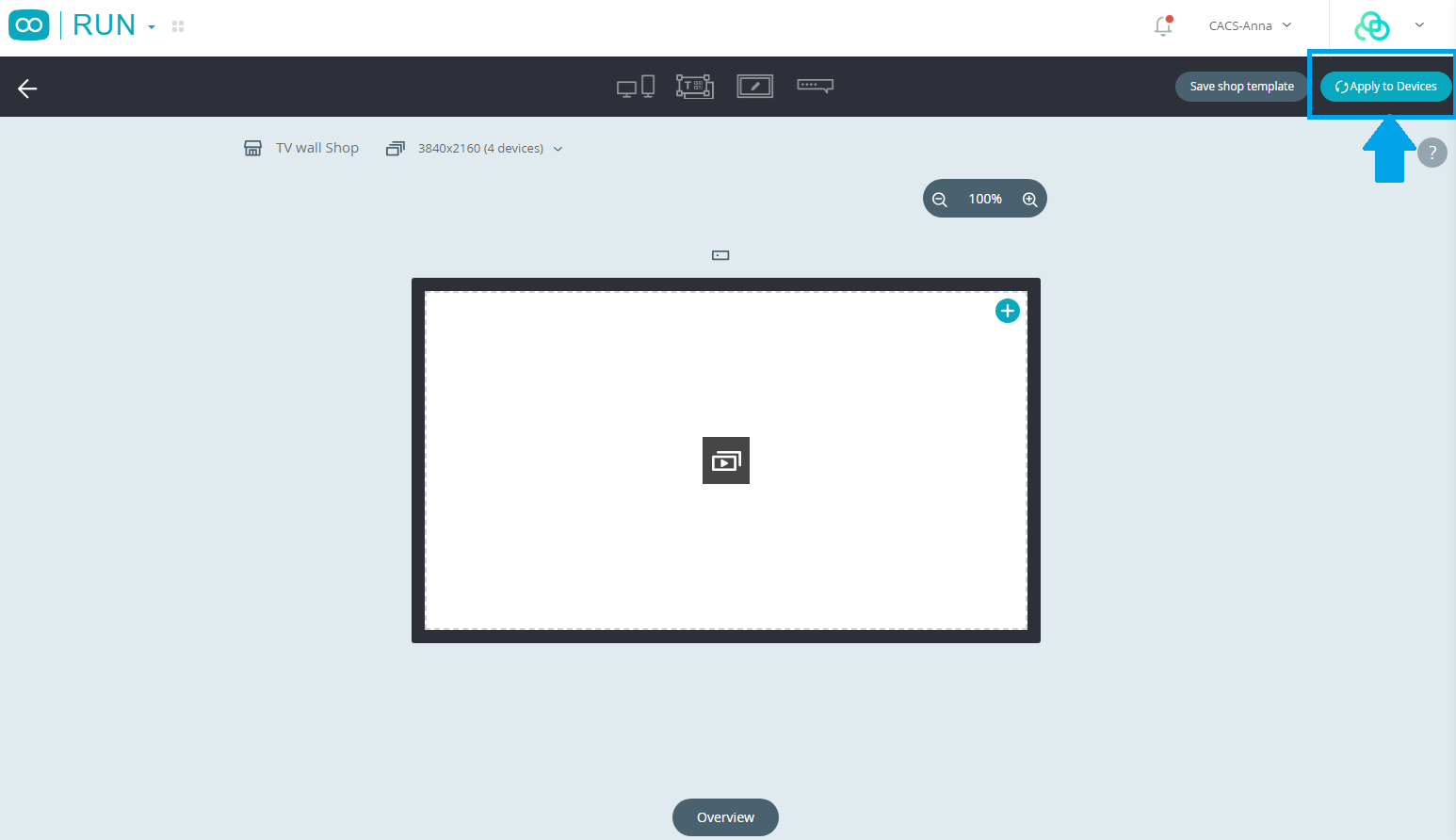

Click "Apply to Devices" to finish the application
