UMD1-80 Multi-Screen - Create and Load Template

Modified on Tue, 7 May at 9:07 PM

"Store Templates": Enables the presentation of multi-screen content for store templates, used to achieve multi-screen or cross-screen effects

- Multi-Screen: Independently set content for each screen and set the interval seconds between images the same. Each screen will transition synchronously to achieve a multi-screen effect.

- Cross-Screen: Set the combined content for the screens, where each screen will play corresponding content in the specified positions to achieve a cross-screen effect.

Add Shop Templates

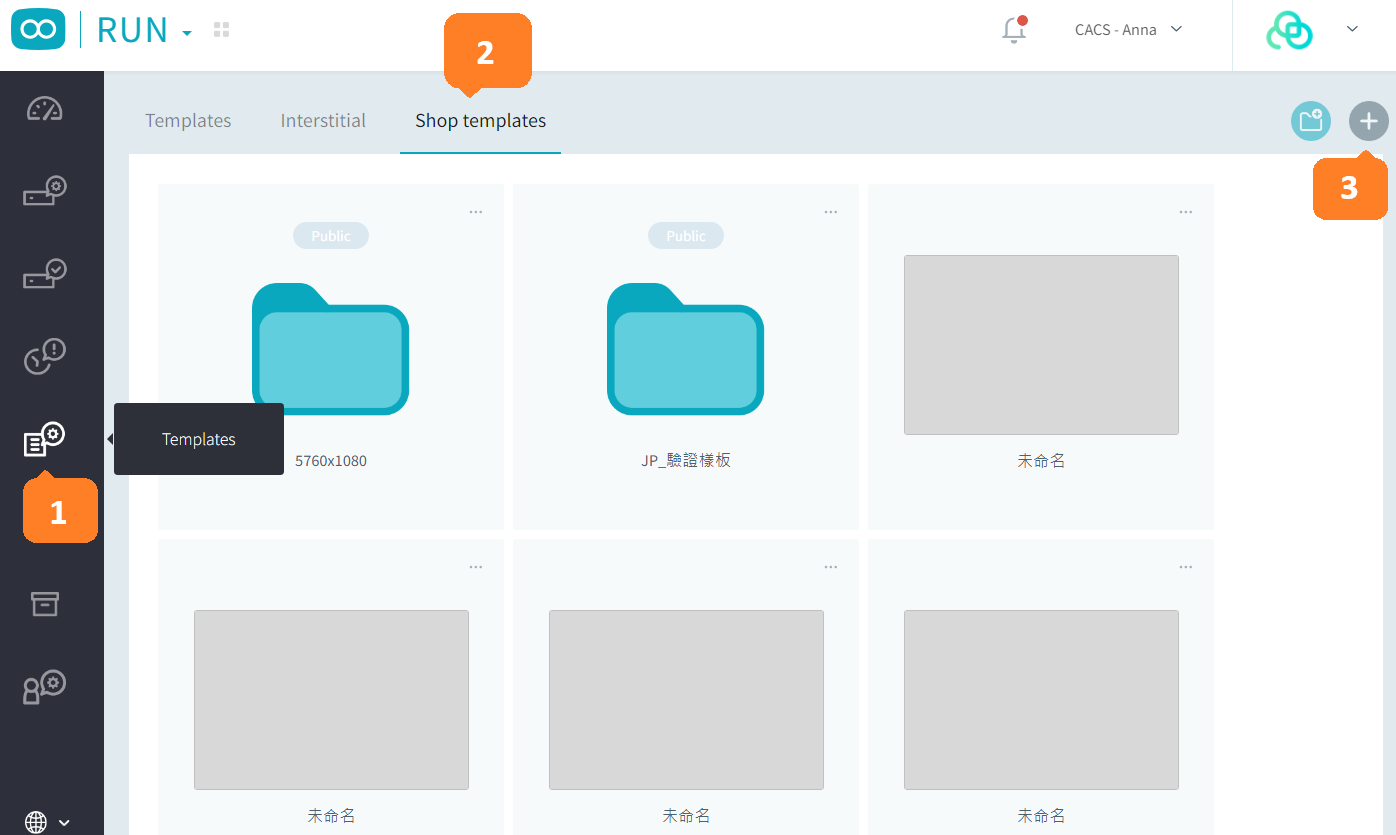

1. Click "Template"

2. Click "Shop Templates"

3. Click "+" to add shop templates

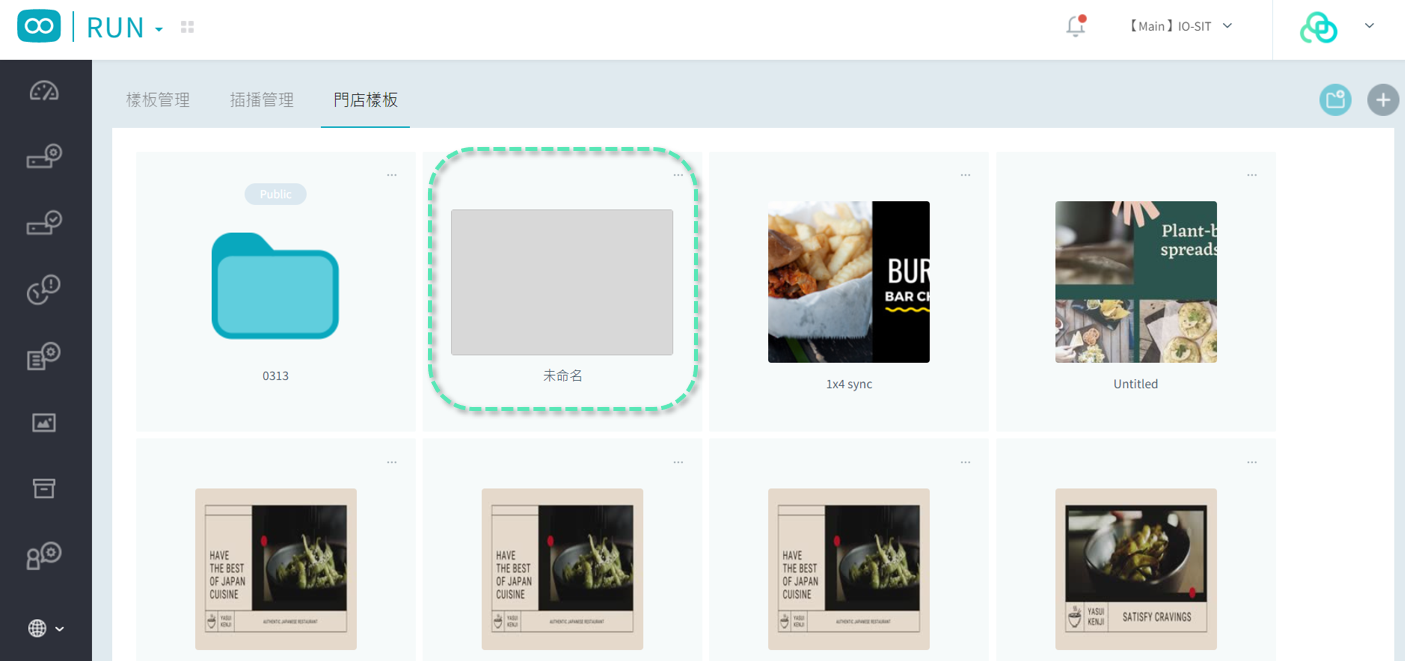

After adding a shop template, the newly added shop template will appear immediately

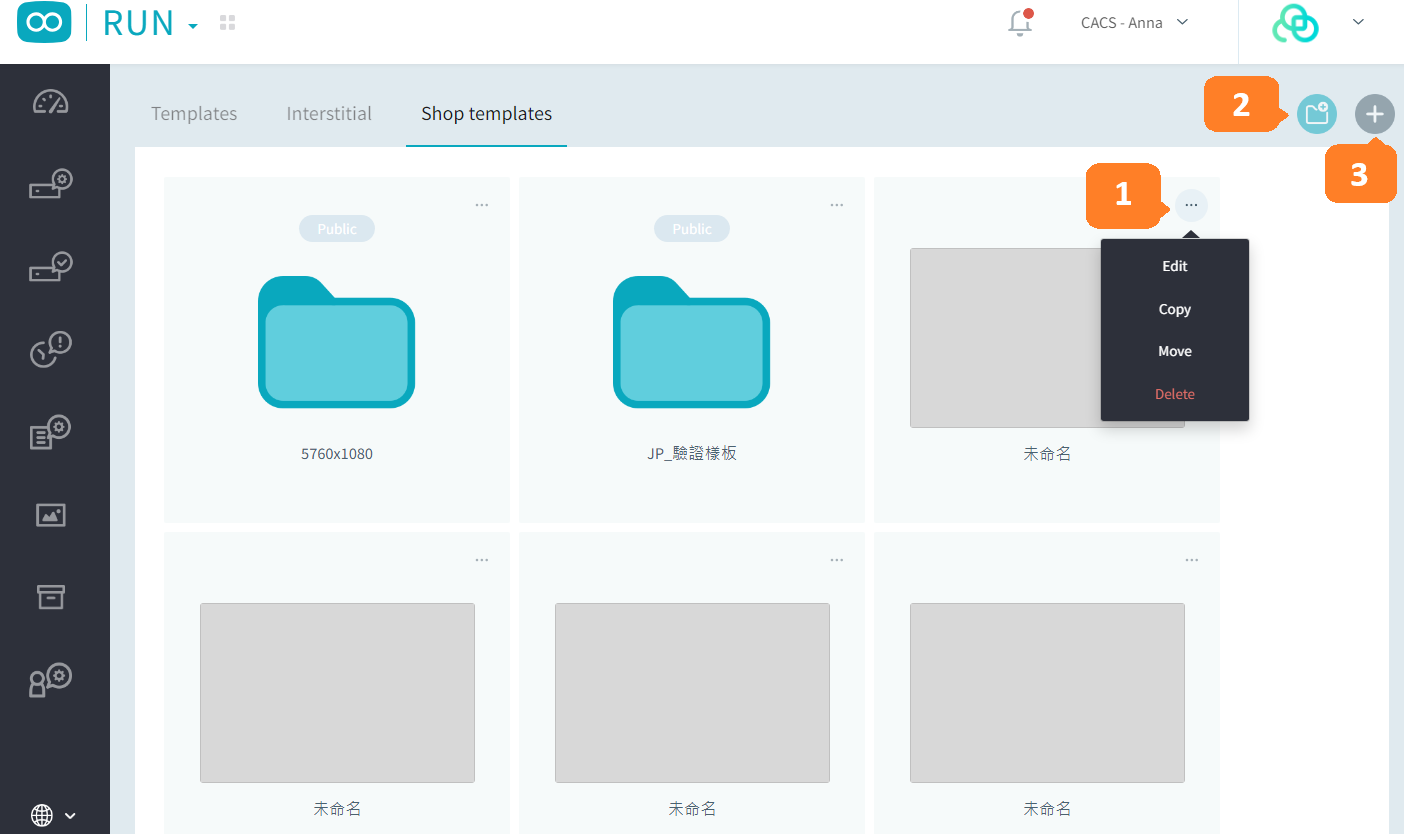

1. Click the "..." to perform actions on the shop template:

a. Edit: Modify the name, QR code, and fixed image

b. Copy: Create a copy of the template, which will appear directly on this page once completed

c. Move: Move the template to another location or folder

d. Delete: Remove the template if it's no longer needed

2. Add Folder: Create a new folder in this section for better management

3. Add Shop Template: Click to create a new store template

Edit Shop Template

Load Shop Template

Quickly import a previously created shop template to the desired shop device group for deployment

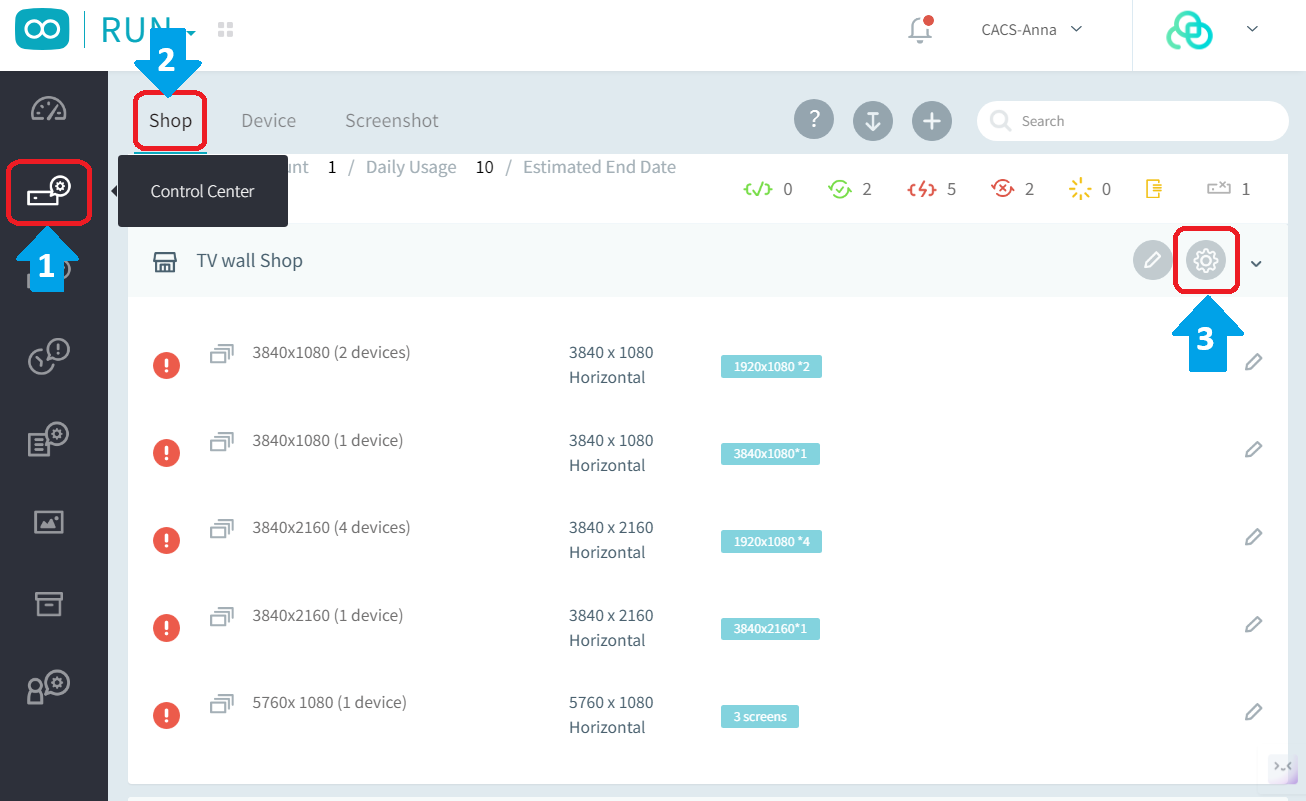

1. Click "Control Center"

2. Click "Shop"

3. Click "Setting"

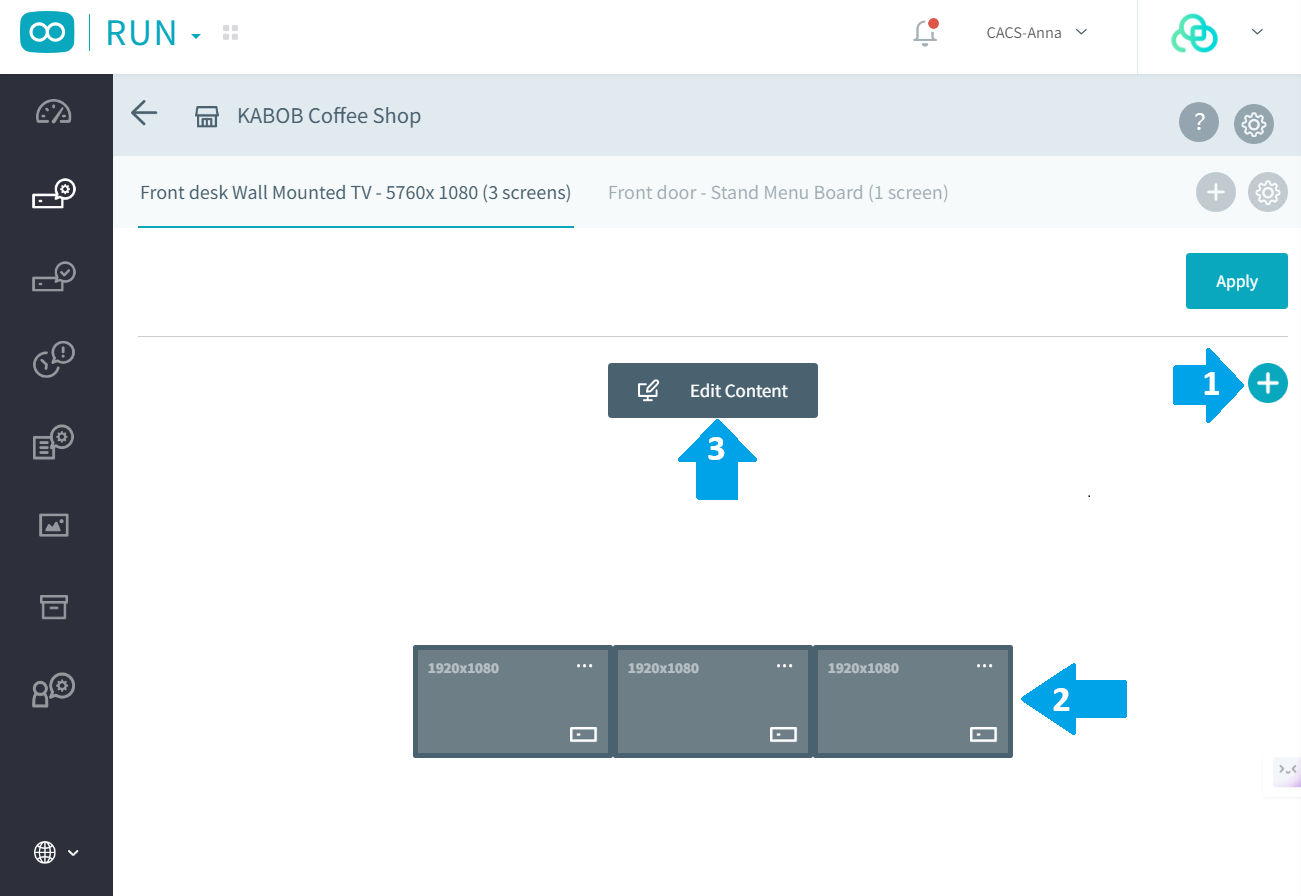

1. Click "+": Add a new screen

2. Set up the screen and pair the device (※ here you need to confirm whether the number and size of the device group match the hardware)

3. Click "Edit Content": Edit the content to be displayed on each device

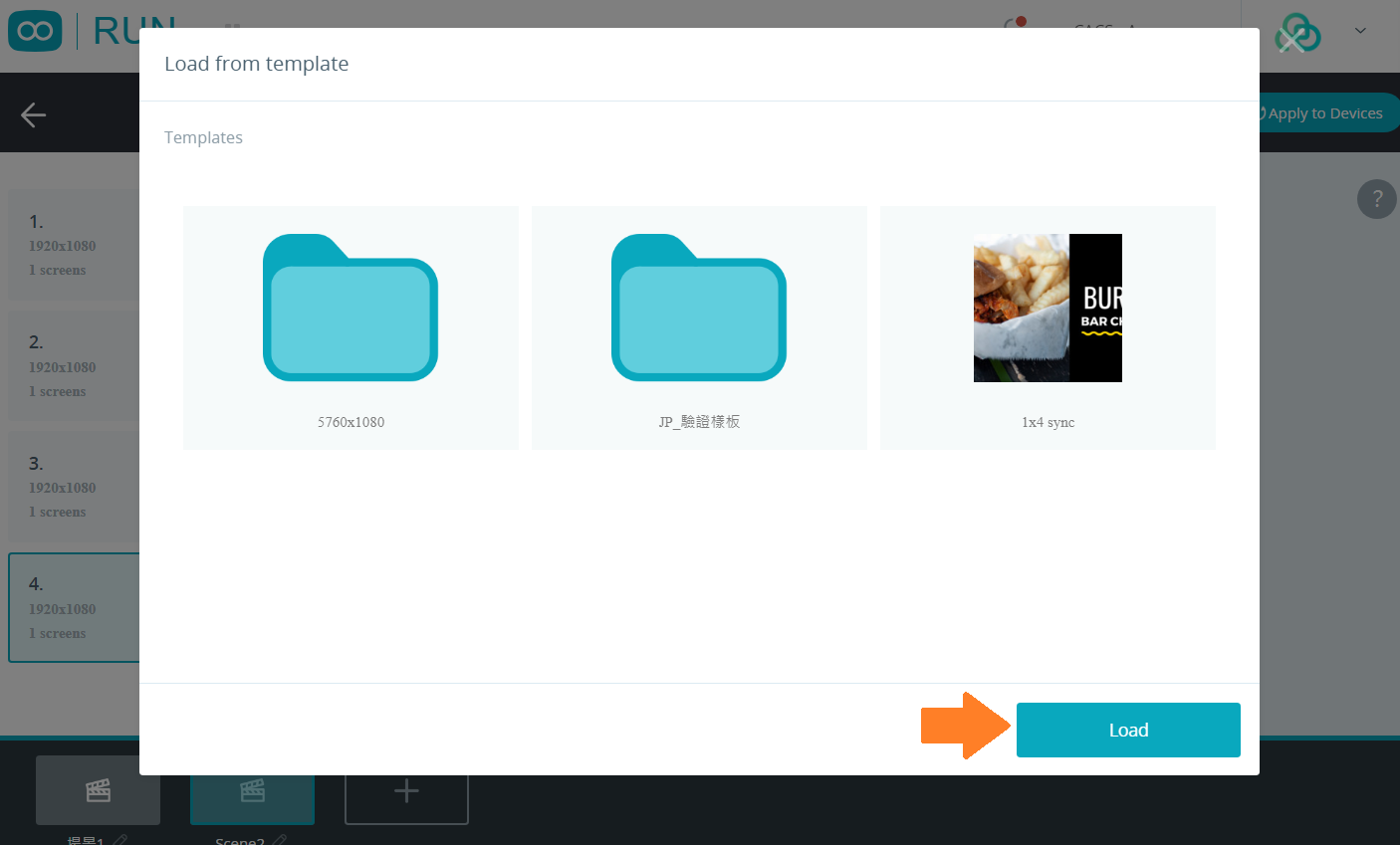

Click "Load from Shop Template"

A template with the same size will appear. After selection, click "Load" to load the store template

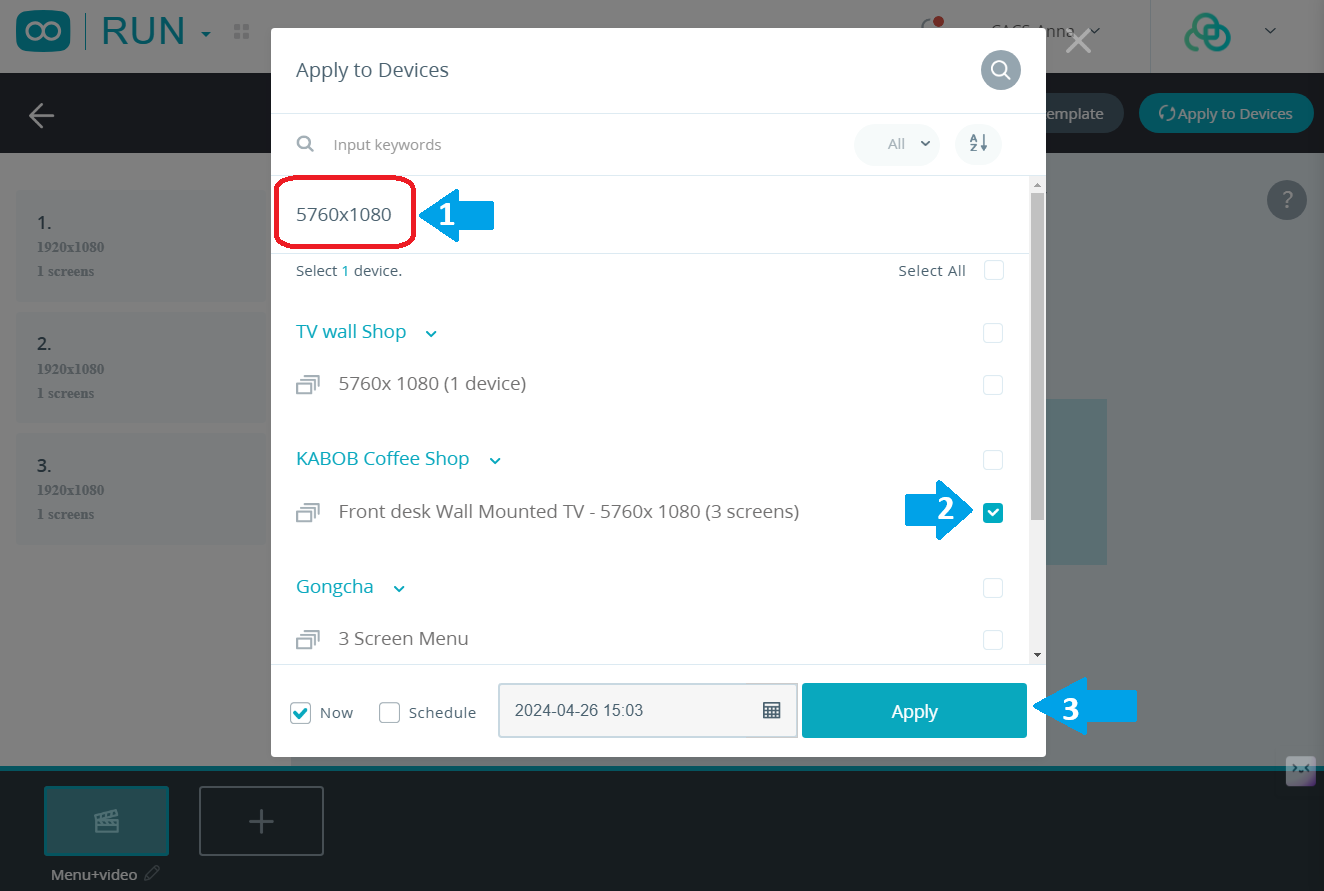

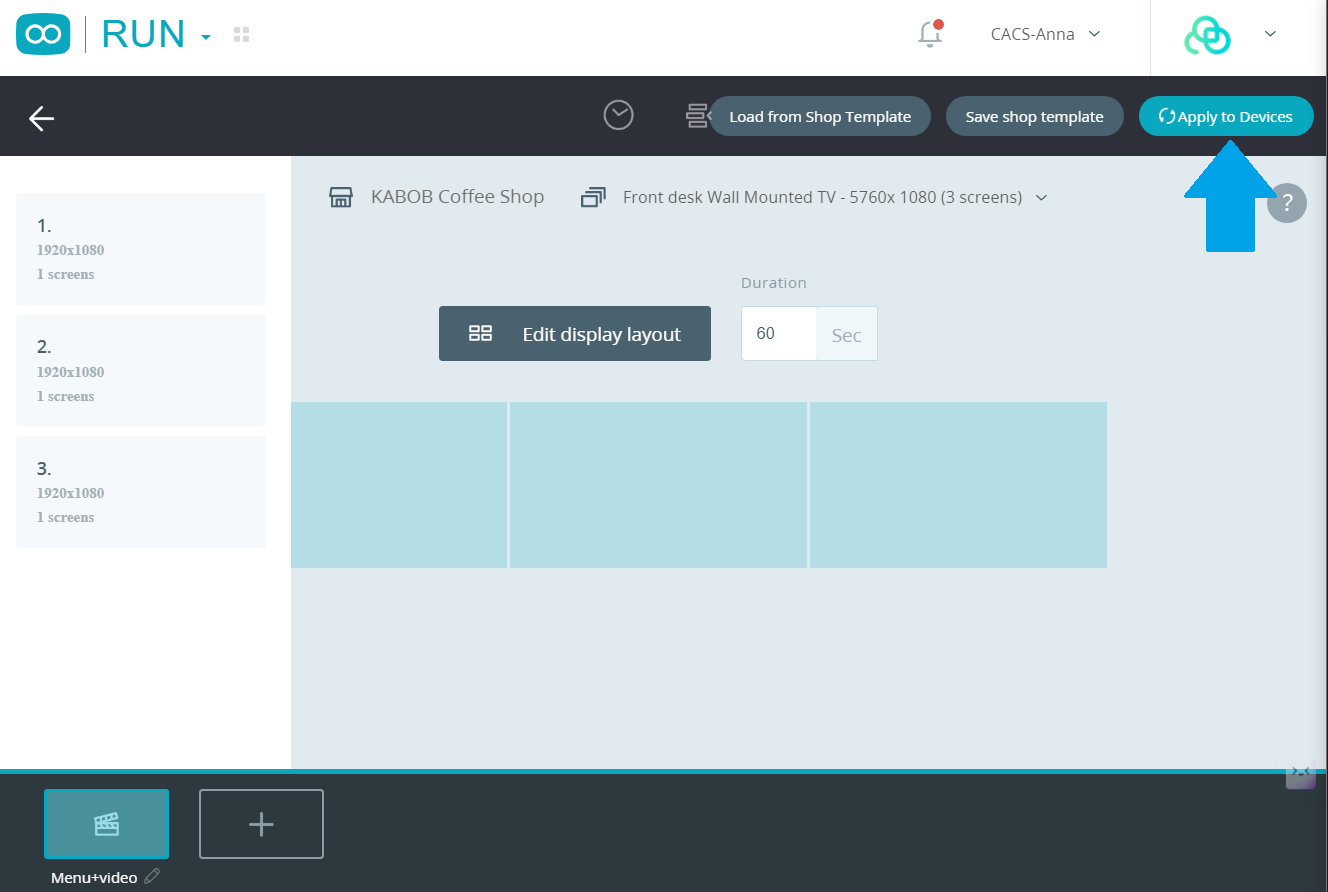

After editing, click "Apply to Devices"

1. "5760x1080": the size of the shop's device set

2. Check the devices that you want to apply

3. Click "Apply"
