UMD1-34 Current Time Setting - Schedule Insertion

Modified on Wed, 24 Apr at 4:30 PM

"Schedule Insertion": This allows for setting specific time slots for presenting content, applicable in scenarios such as anniversaries, wedding banquets, etc. It caters to the need for displaying different content during specific periods. Its priority surpasses that of the scheduled playback list, enabling the display of regular content during non-specific periods

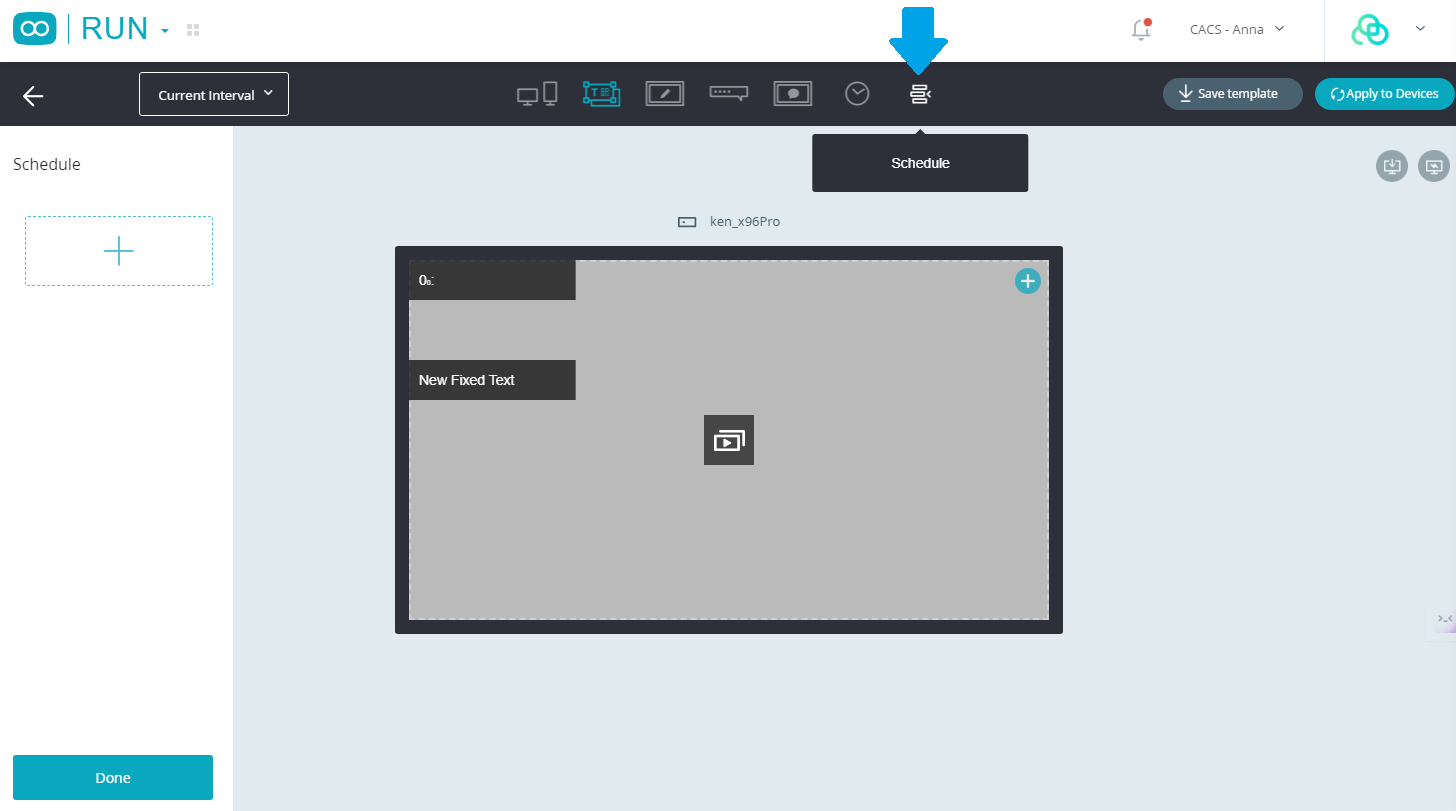

Click on the "Schedule" tab

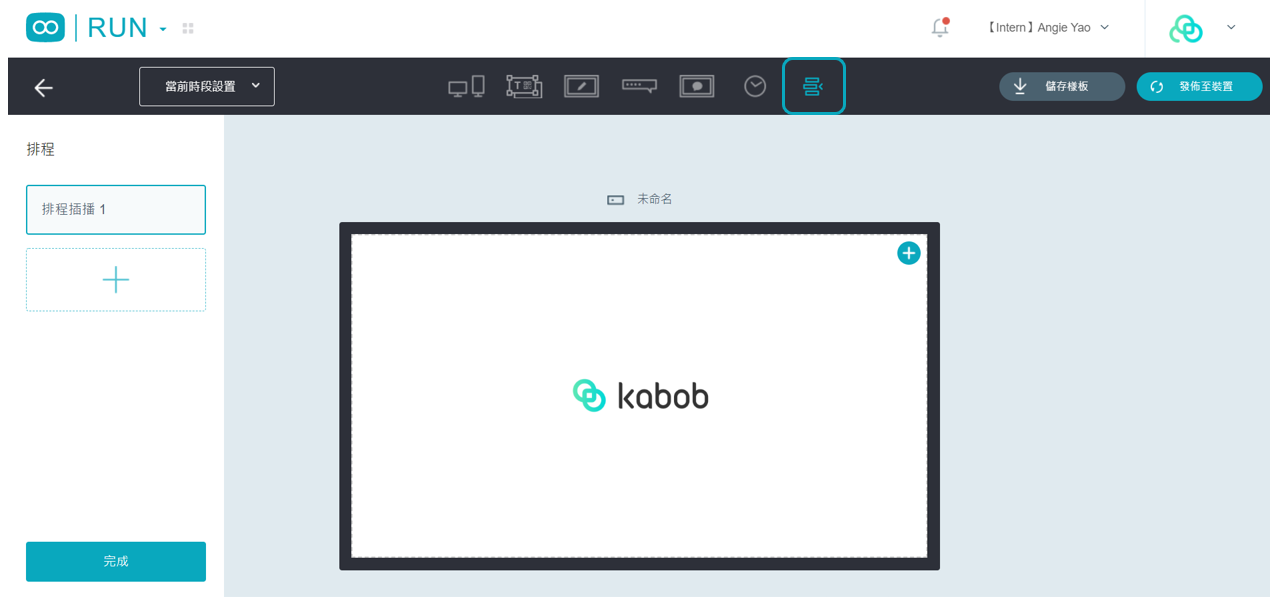

If a schedule is added, the icon will appear in a blue style (see the bold outline)

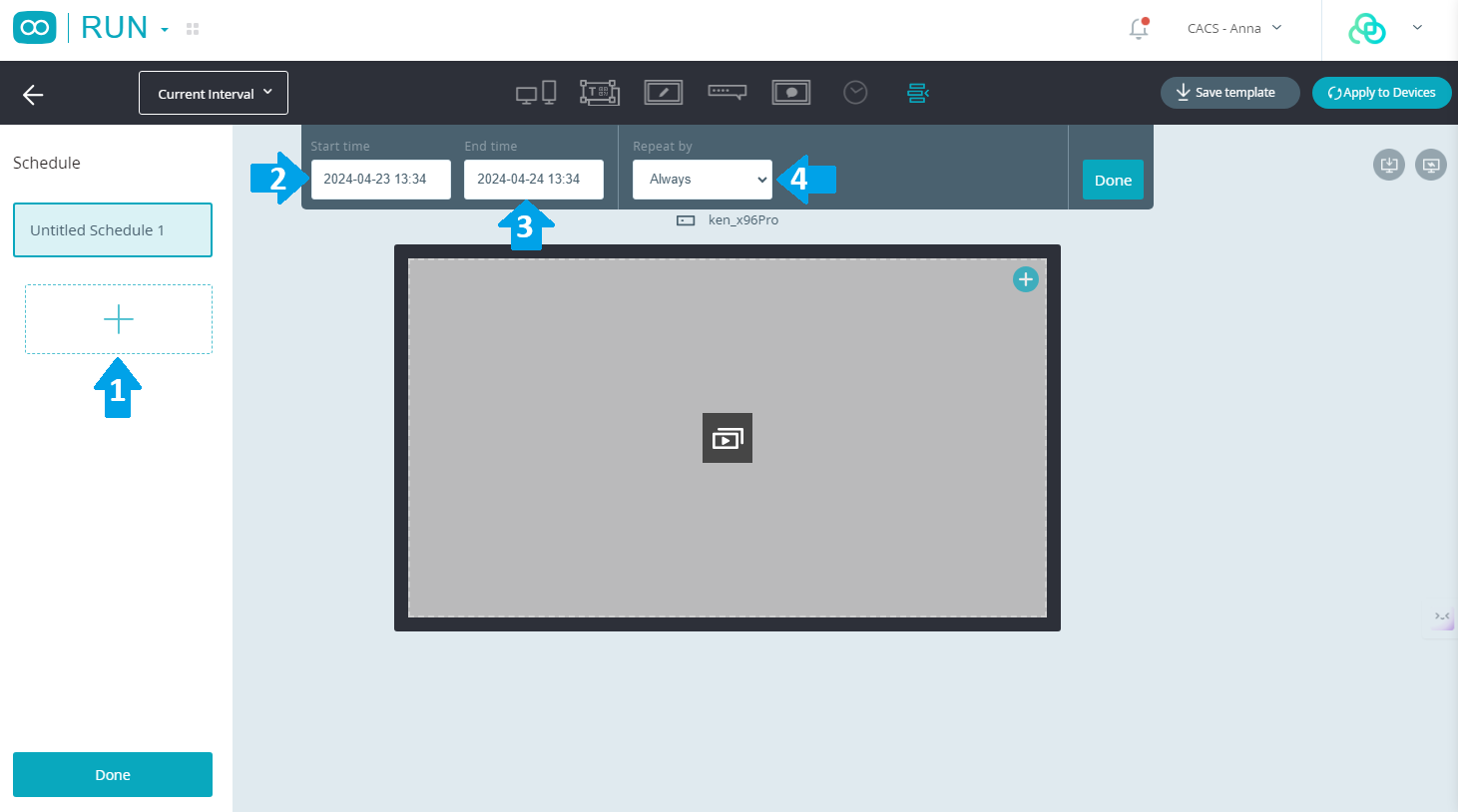

1. Clicking the "+" in the left column allows you to add a schedule and configure it

2. Start Time: The start time of the content to be published within the schedule

3. End Time: The end time of the content to be published within the schedule

4. Repeat: Divided into "Always" and "Seconds"

i. Alway: Causes the content within this schedule to play continuously within the specified time frame

ii. Seconds:

- Repeat Frequency: Set the frequency at which this schedule's content should appear.

- Display Duration: The seconds during the specified frequency when this content should appear

※Using the example below: The content within this schedule appears every 60 seconds, and each appearance lasts for 10 seconds

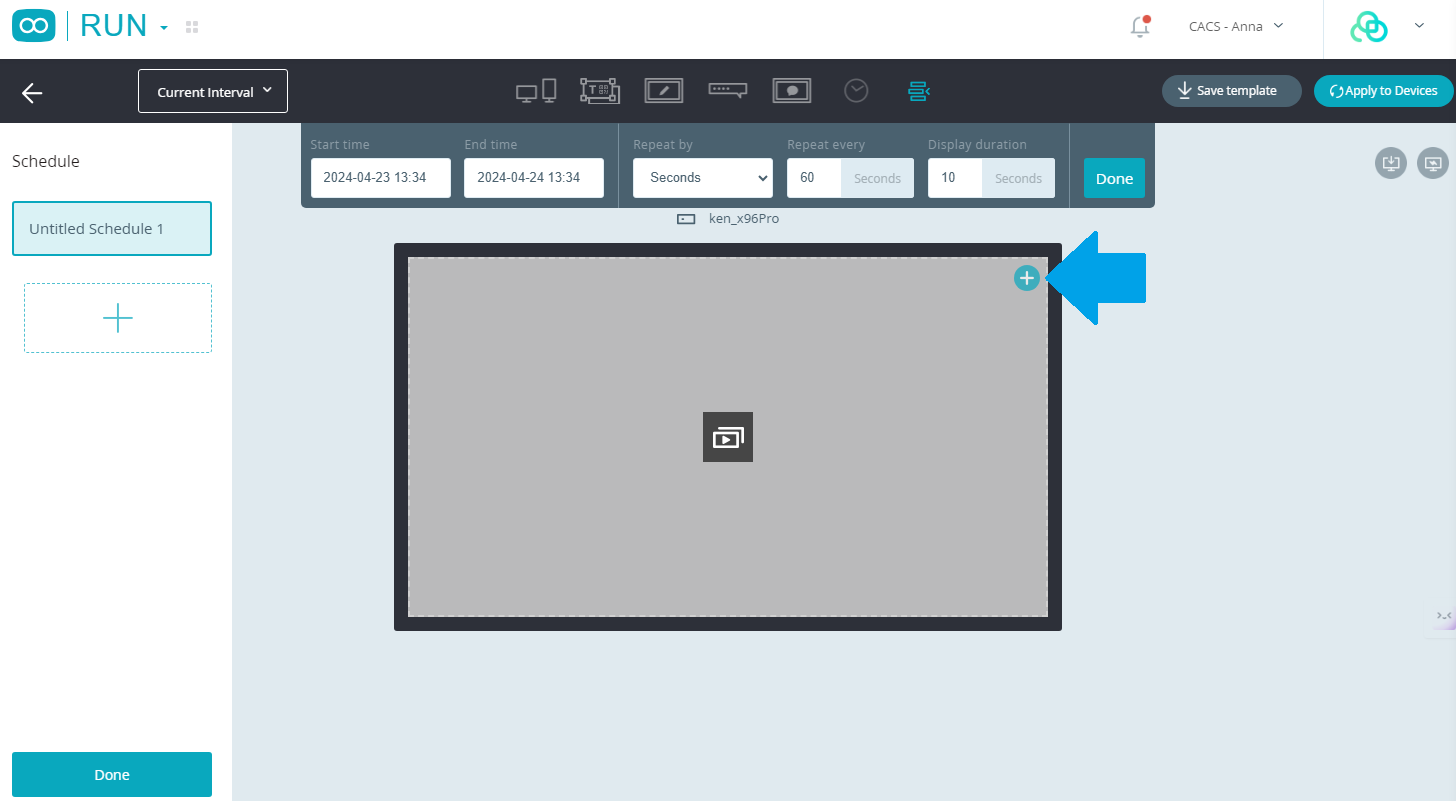

Click the "+" on the right to select the content format to be added

Clicking within the template reveals the content arrangement:

- In the left column, "Edit Content" allows you to add new content

- In "Setting" you can choose

1. Crop to Fit: Choose whether to fill the unfilled portions

2. Transition: Select transition effects for each frame

3. Spacing Interval: Adjust the seconds between individual images

4. Once you finish editing, click " Done"

※Pay attention to whether there is newly added content within the "Schedule" content arrangement

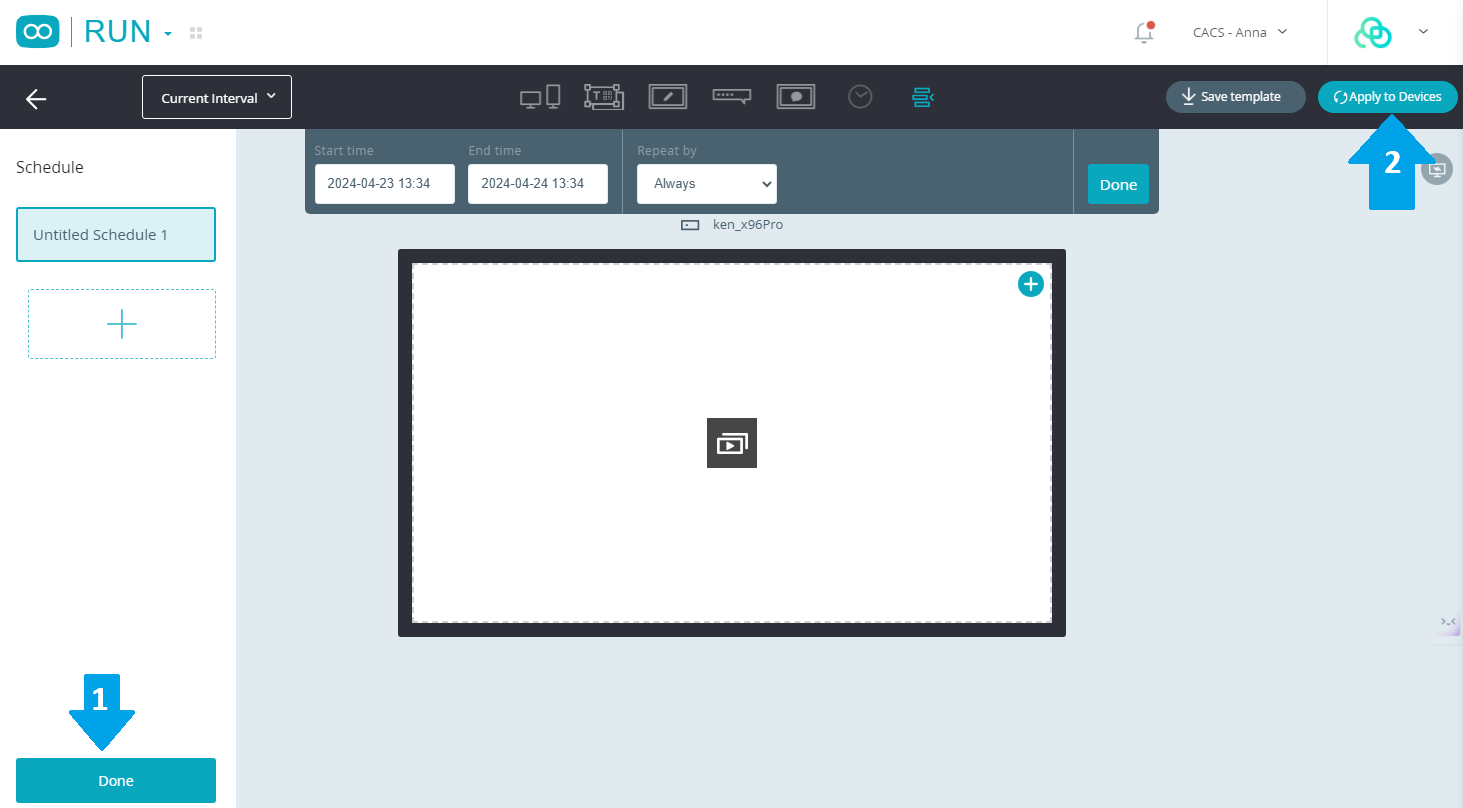

1. Once you finish the schedule insertion editing, click "Done"

2. After setting, click "Apply to Devices" on the right corner to deliver to the devices.
