Learning Tips: Understand how to navigate under the Device Management page
"Device Status": display all devices' status including name, version, type, group, template name, last online time

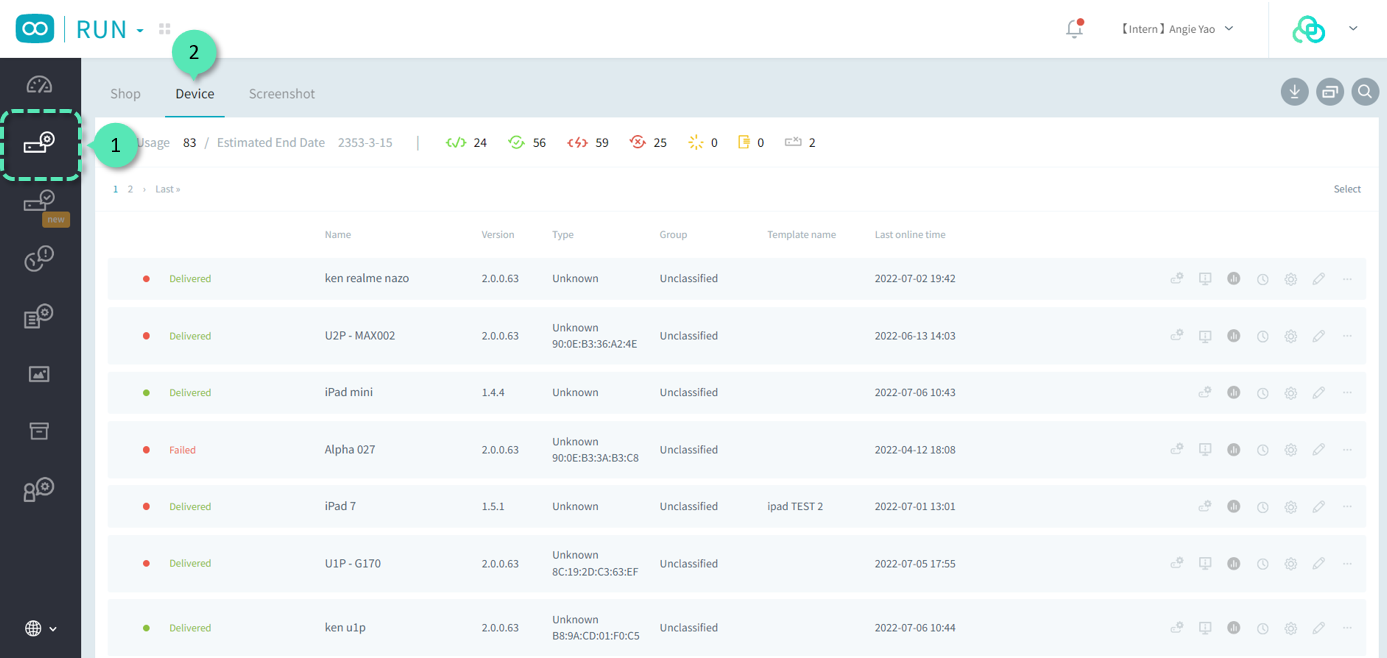

1. Click "Control Center"
2. Click "Device"
1. Online: the device is connected to the internet
2. Delivered: the device publishes the content template successfully
3. Offline: the device didn't connect to the internet
4. Sync failure: the device didn't receive the content template
5. Sending: the content template is sending and the device hasn't received it
6. Schedule: schedule a certain time to publish the content template
7. No data: nothing added to the device yet
1. Red light / Green light: the device is playing content template or not
2. Delivered / Failed: the content template published successfully or not

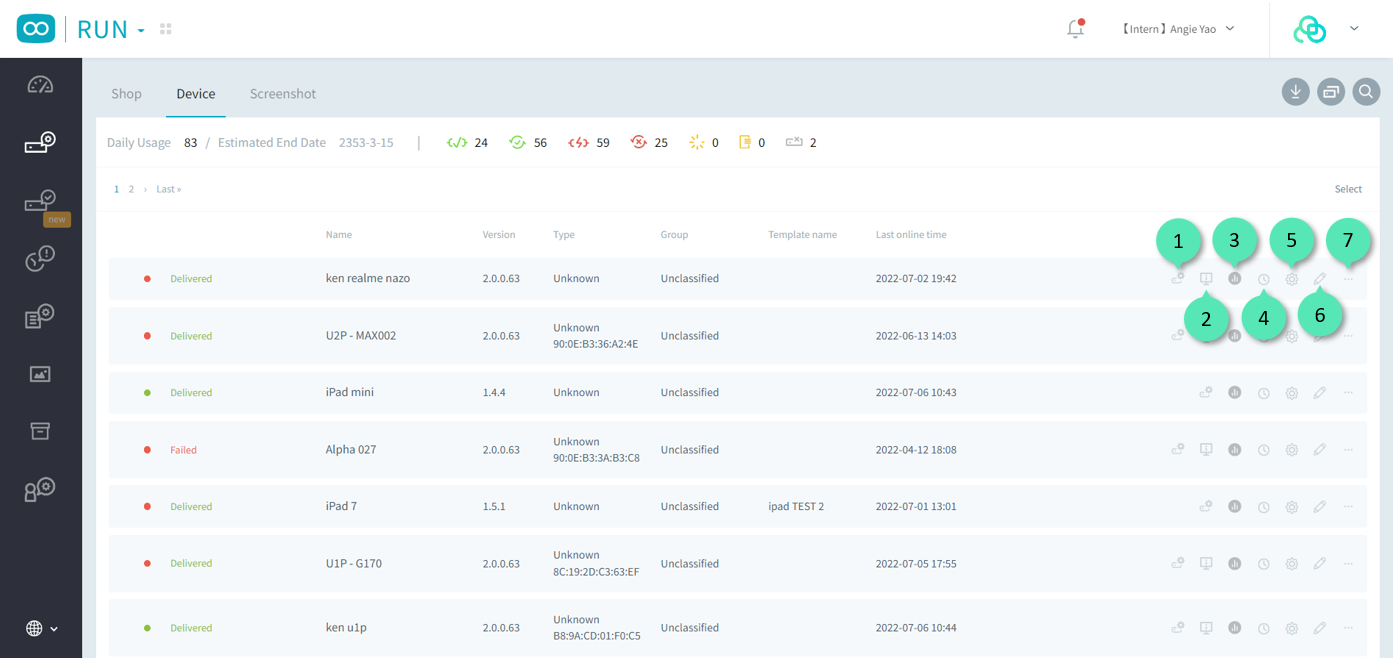

1. Device setting: setting "Download Time" / "Host Device IP" / "Present-Exit" / "Wake-Up Settings" and represent "Device Storage Usage"
2. Device information: including "Version" / "Device time" / "Wifi quality" / "LAN" / "Wi-Fi" / "Power status"
3. Program layout: display "Device Settings" and "Playlist"
4. Online / Offline statistics: display the device's internet-connected status record, the green light represents when the device connected to the internet for more than 50 minutes per hour, otherwise it is a red light
5. Device edit: edit device "Name" / "Type" / "QR code" / "Fixed image" / "API token" / "Group" / "Remark" / "Category" / "Local time adjust" and switch "Internet consumption control"
6. Content edit: edit the content template and apply it to the device
7. More: including permission set to decide who can edit this device
