UMD1-15 Device Information - QR code & Fixed Image

"Content Edit and Apply":  display the URL as a QR code or fixed image on the screen

STEP 1.

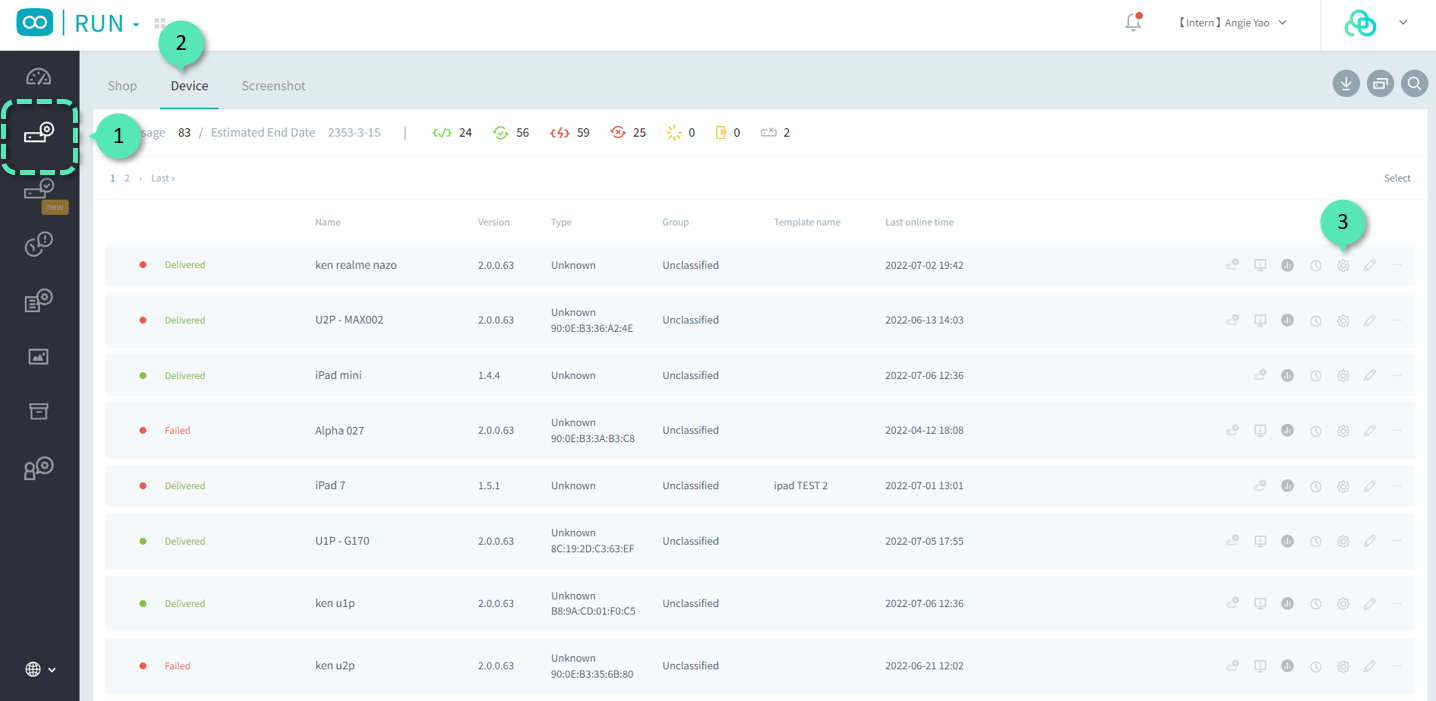

Control Center - Device

1. Click "Control Center"

2. Click "Device"

3. Click "Device Edit"

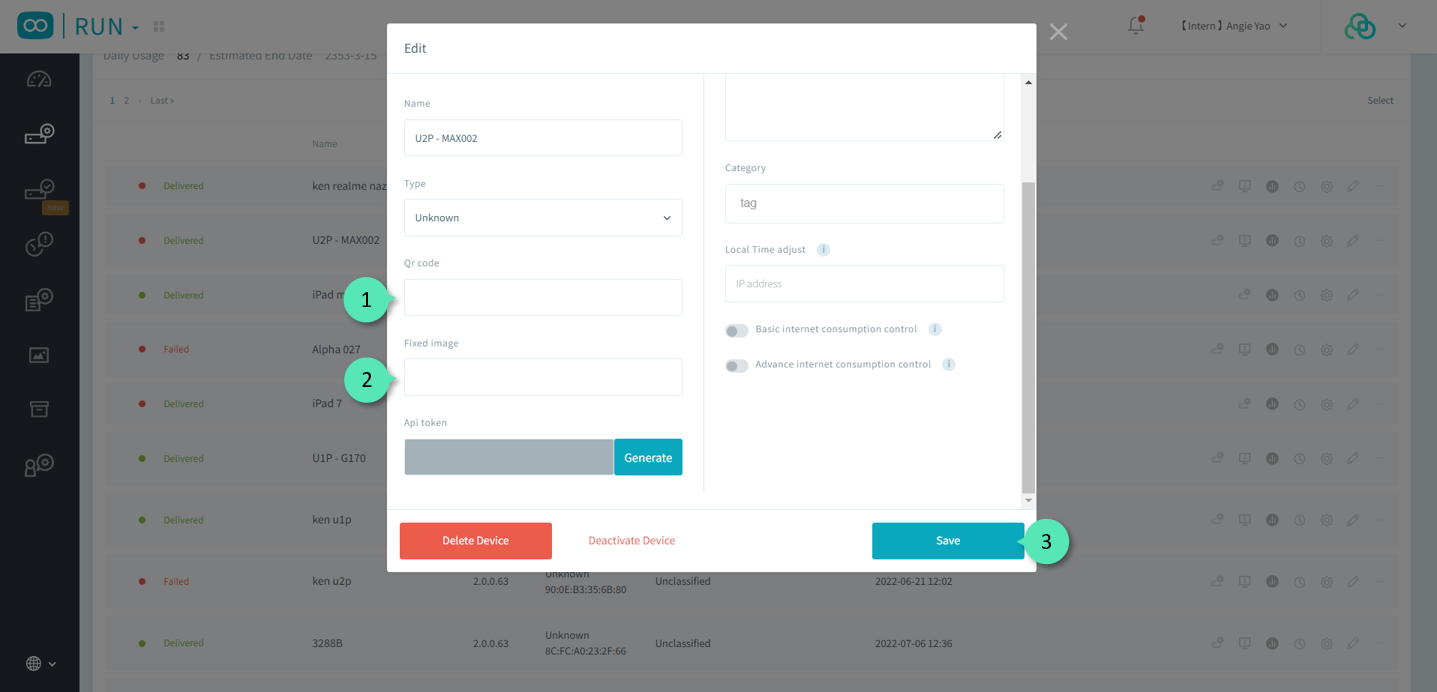

Find the input boxes on the edit page

1. QR code: enter the URL that needs to be directed

2. Fixed Image: enter the URL that needs to be present as an image

3. Click "Save"

STEP 2.

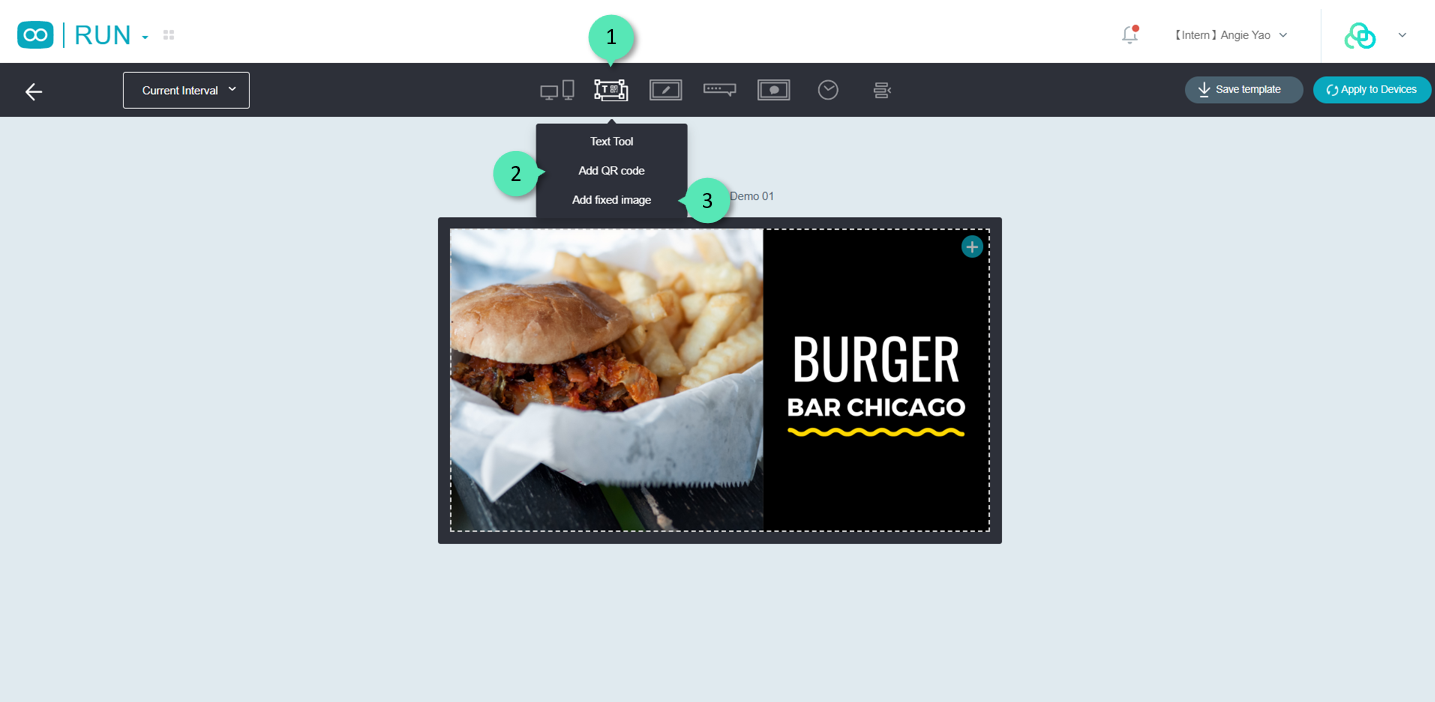

Edit Content Template

1. Click icon

2. "Add QR code": click to show the QR code edit page

3. "Add fixed image": click to show the fixed image edit page

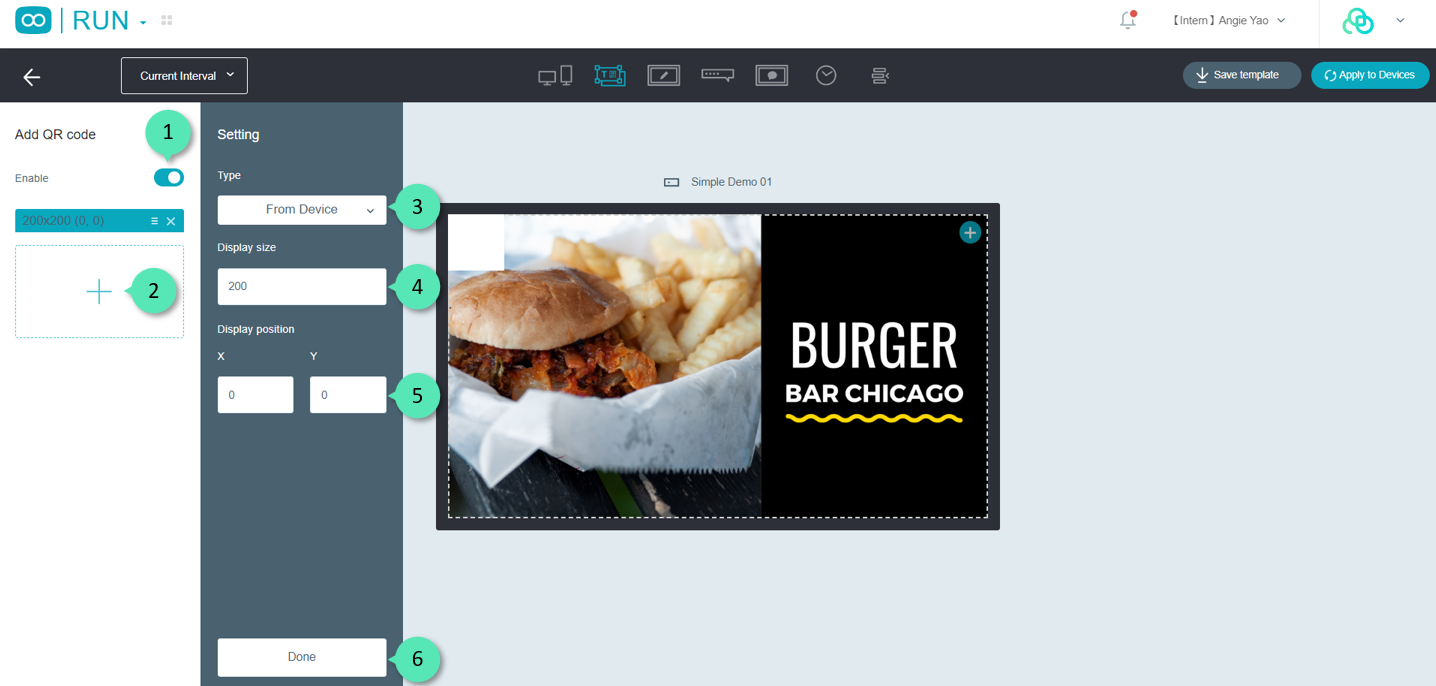

Add QR code

1. Click the switch button to enable add QR code

2. Click "+": add QR code

3. "Type": coming soon

4. "Display size": enter the QR code size that needs to be present in the template

5. "Display position": set the position where the QR code should be displayed in the template

• X: start from left by 0
• Y: start from the top by 0

6. Click "Done" to save

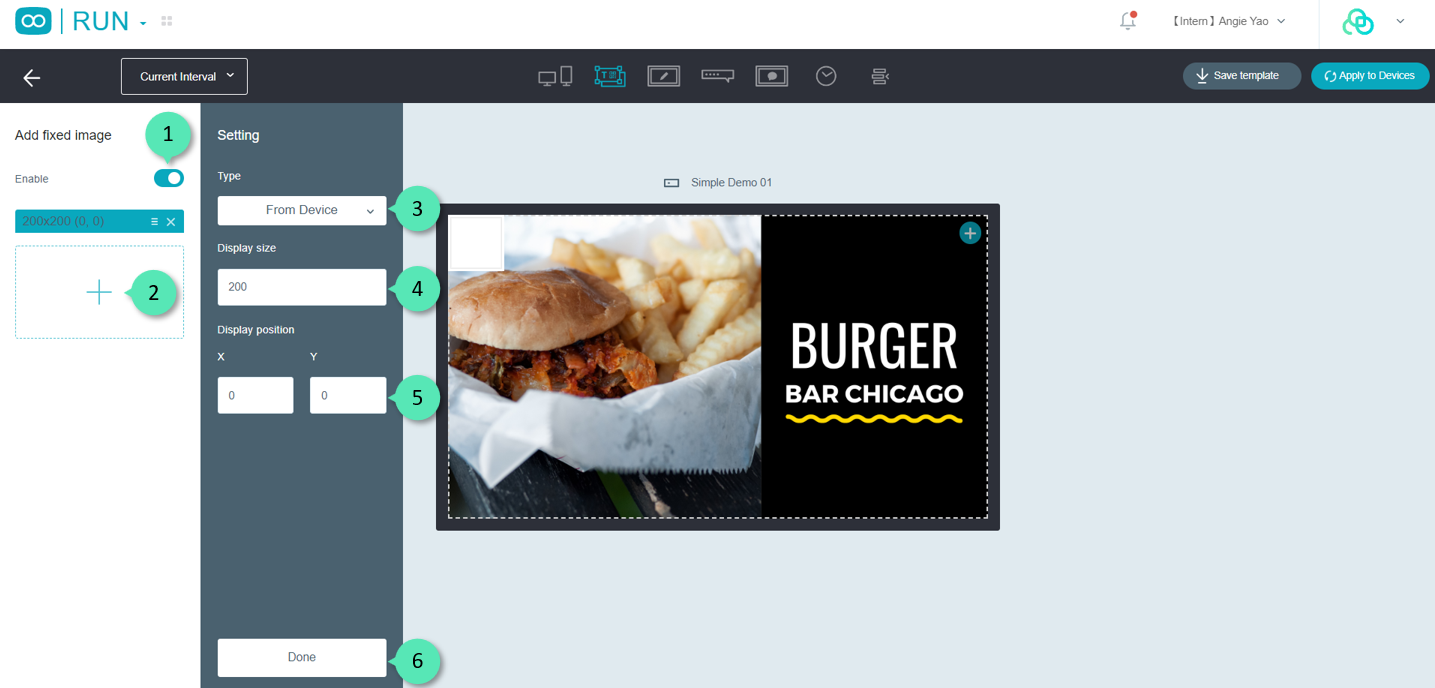

Add fixed image

1. Click the switch button to enable add fixed image

2. Click "+": add fixed image

3. "Type": coming soon

4. "Display size": enter the fixed image size that needs to be present in the template

5. "Display position": set the position where the fixed image should be displayed in the template

• X: start from left by 0
• Y: start from the top by 0

6. Click "Done" to save

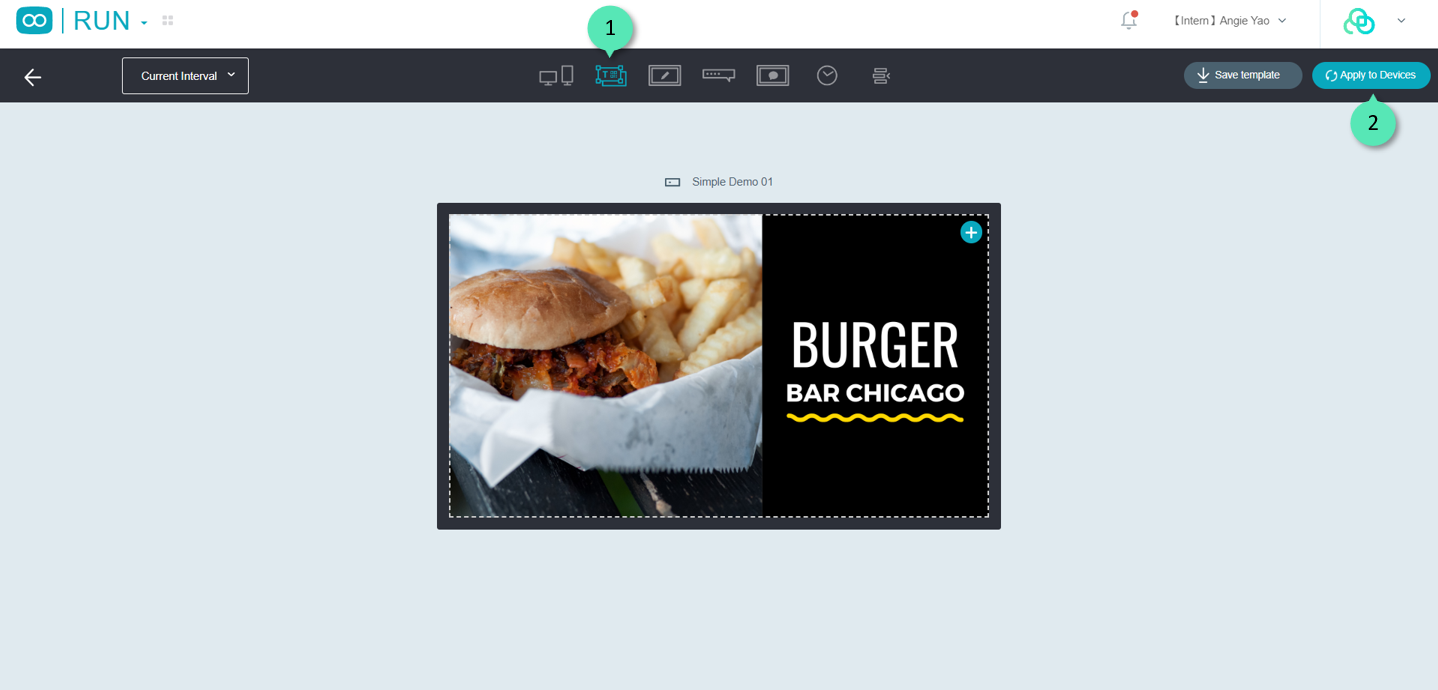

1. If the content is edited and saved, the icon will turn blue, indicating that the function is enabled

2. Click "Apply to Devices" to publish
