UMA0-01 KABOB Cloud Voicer In-store Music Master - Hardware Installation and Setup Guide

Contents

What's Included in the Box

1. Hardware

2. Quick Installation Guide

3. Set up your music program & Publish

4. Appendix - Wi-Fi setting

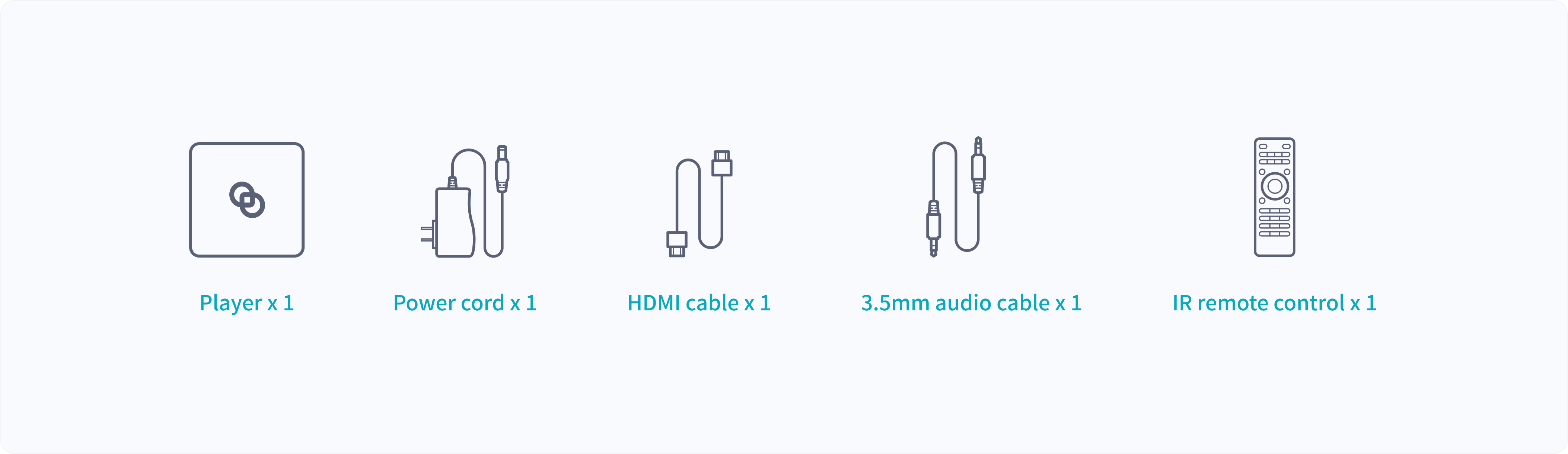

What's Included in the Box

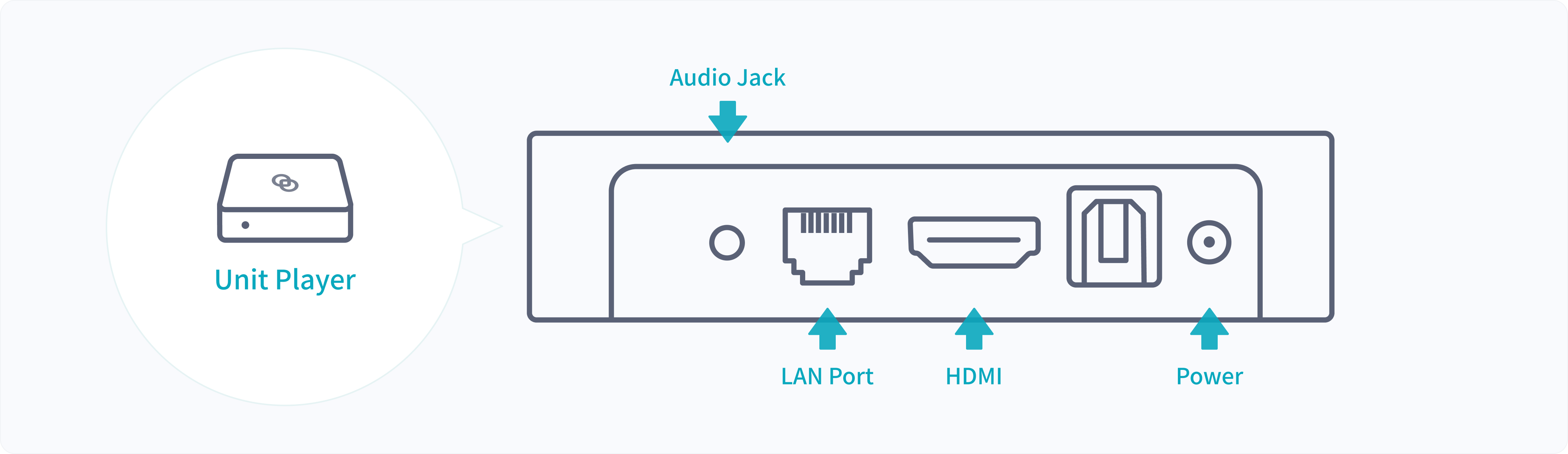

Hardware

Note: The interface of different models will change according to the different device models, this image is for reference only.

Quick Installation Guide

STEP 1.

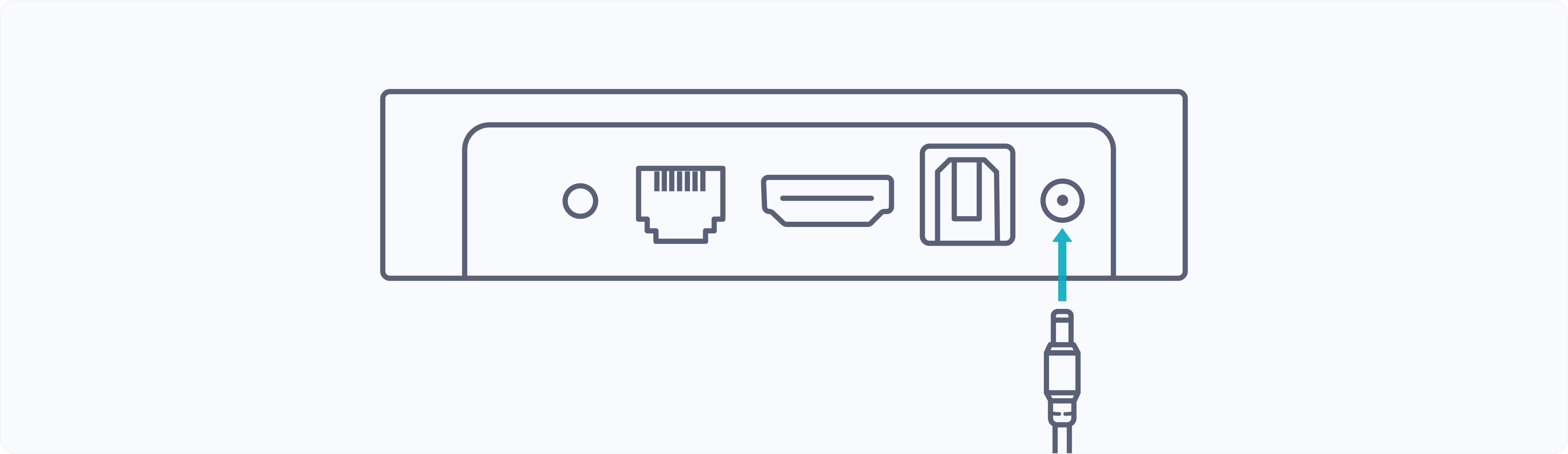

Power Connect

Plug the power cord into the Unit Player, the indicator light will light up, and the Unit Player will start automatically.

STEP 2.

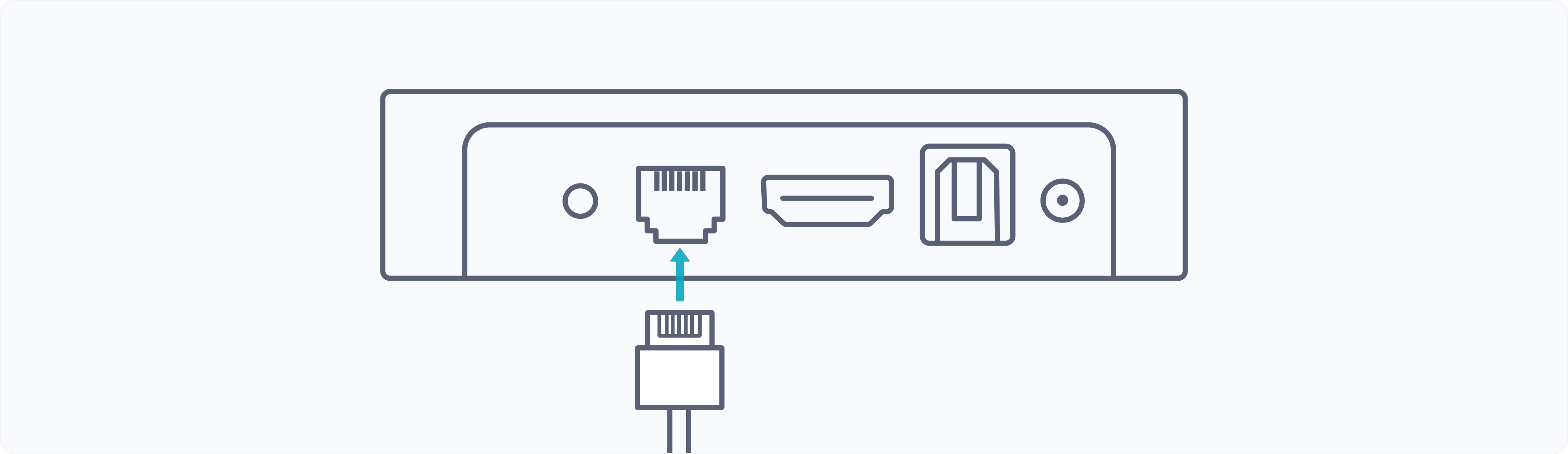

Connect To Your Network via Ethernet Cable Into The LAN Port

To use your media player, it must be connected to the Internet. The player is configured for DHCP by default.

STEP 3

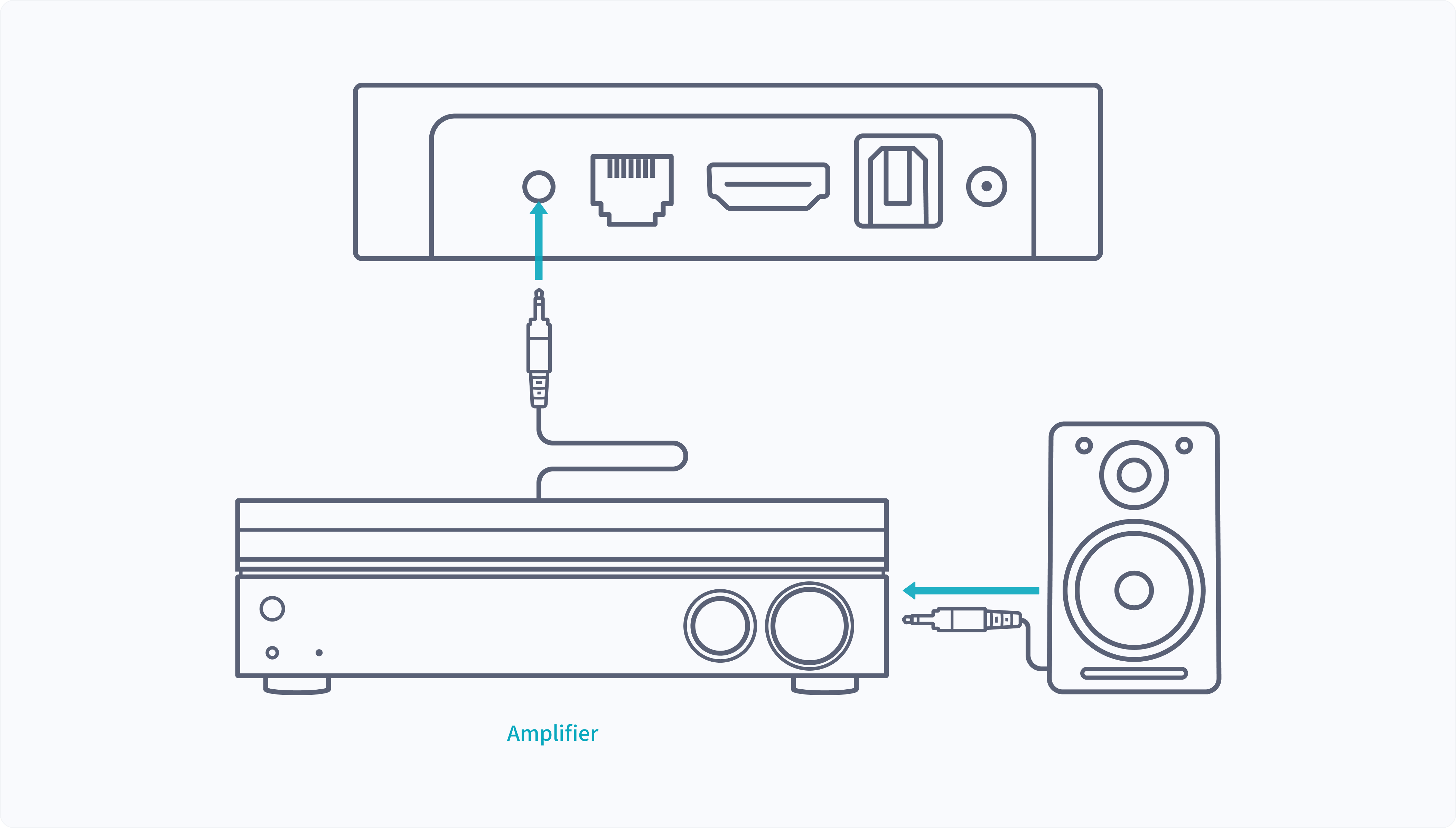

Connect To The Amplifier (Speaker)

Connect the 3.5mm side to the unit and plug the RCA audio cable into the input on your amplifier.

STEP 4

Setup Your Music Program＆Publish To Your Device

To update the music on your player, log in via cloud.kabob.io and select the Voicer app.

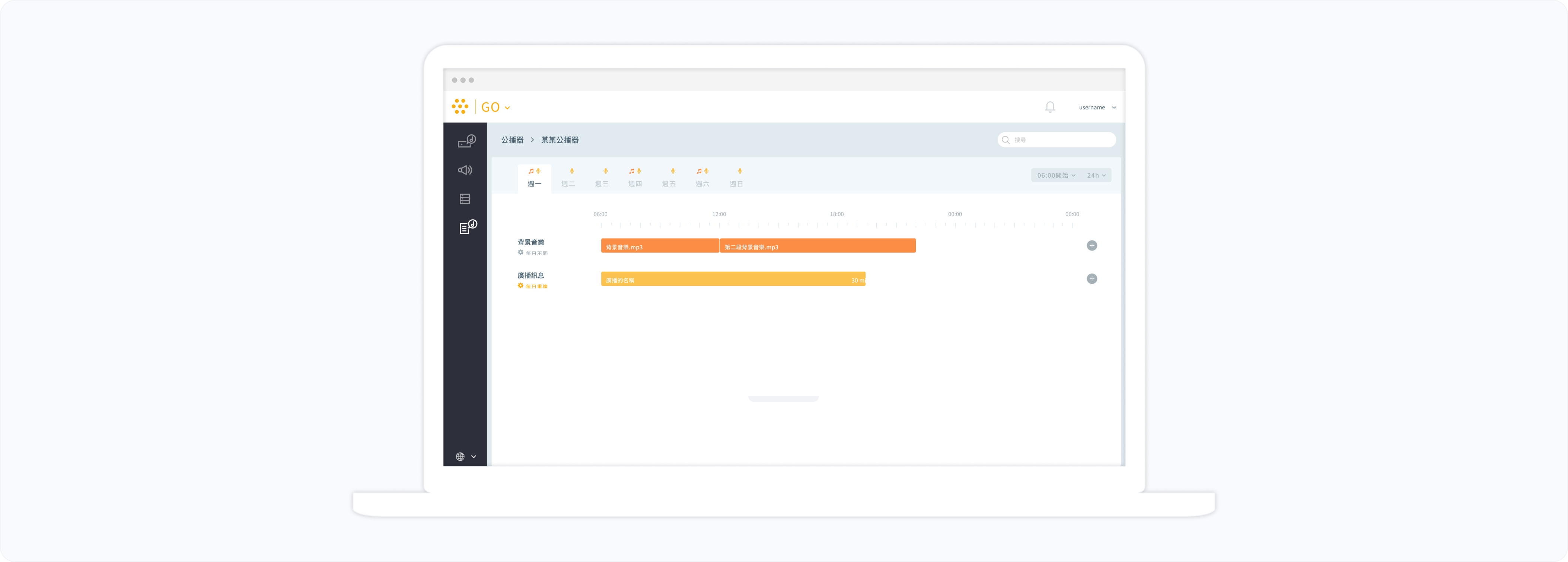

Set up your program

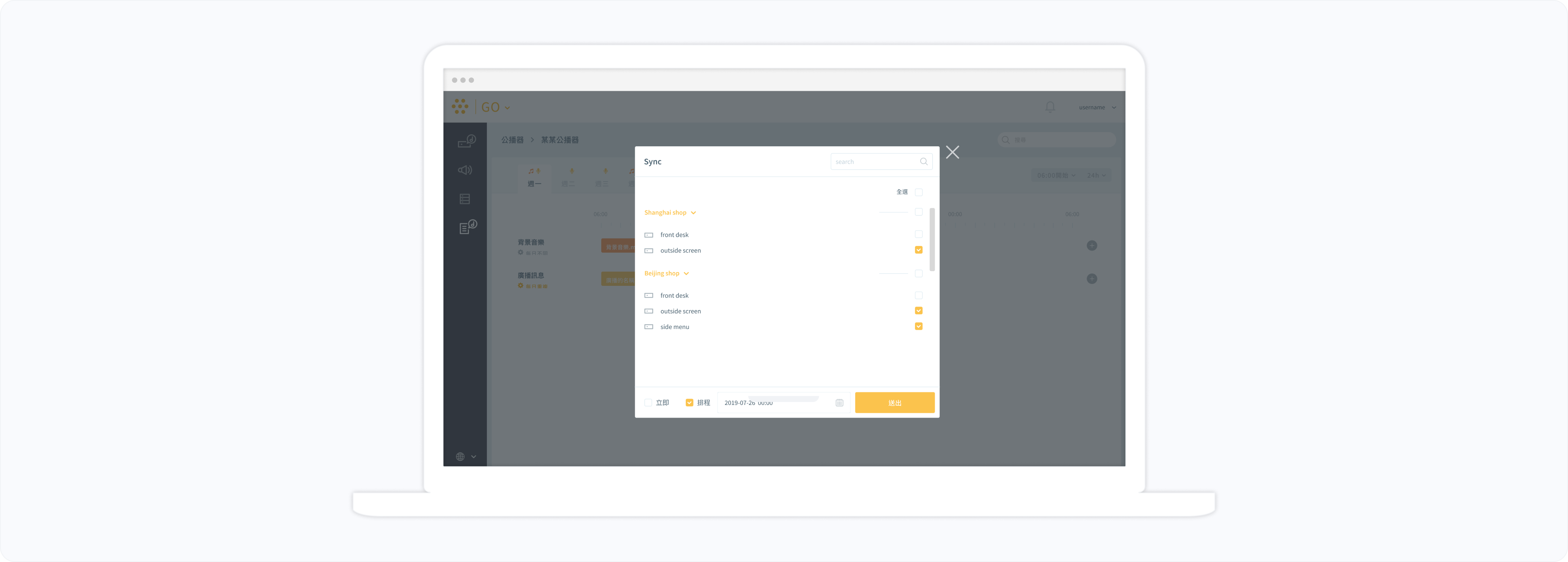

Publish to designated devices

Appendix - Wi-Fi Setting

STEP 1

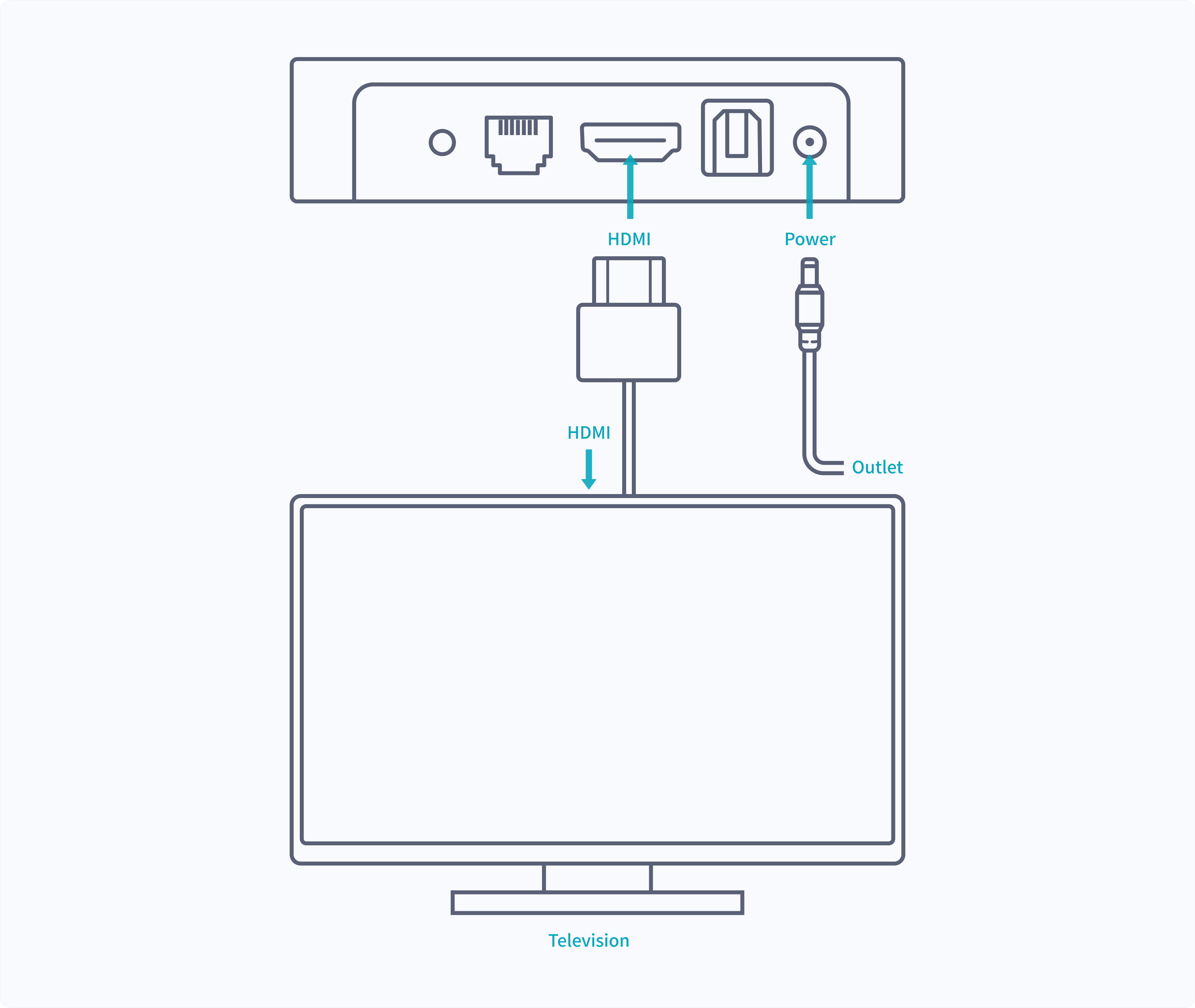

Screen Connect

Use an HDMI cable cable to connect the Unit Player and Television.

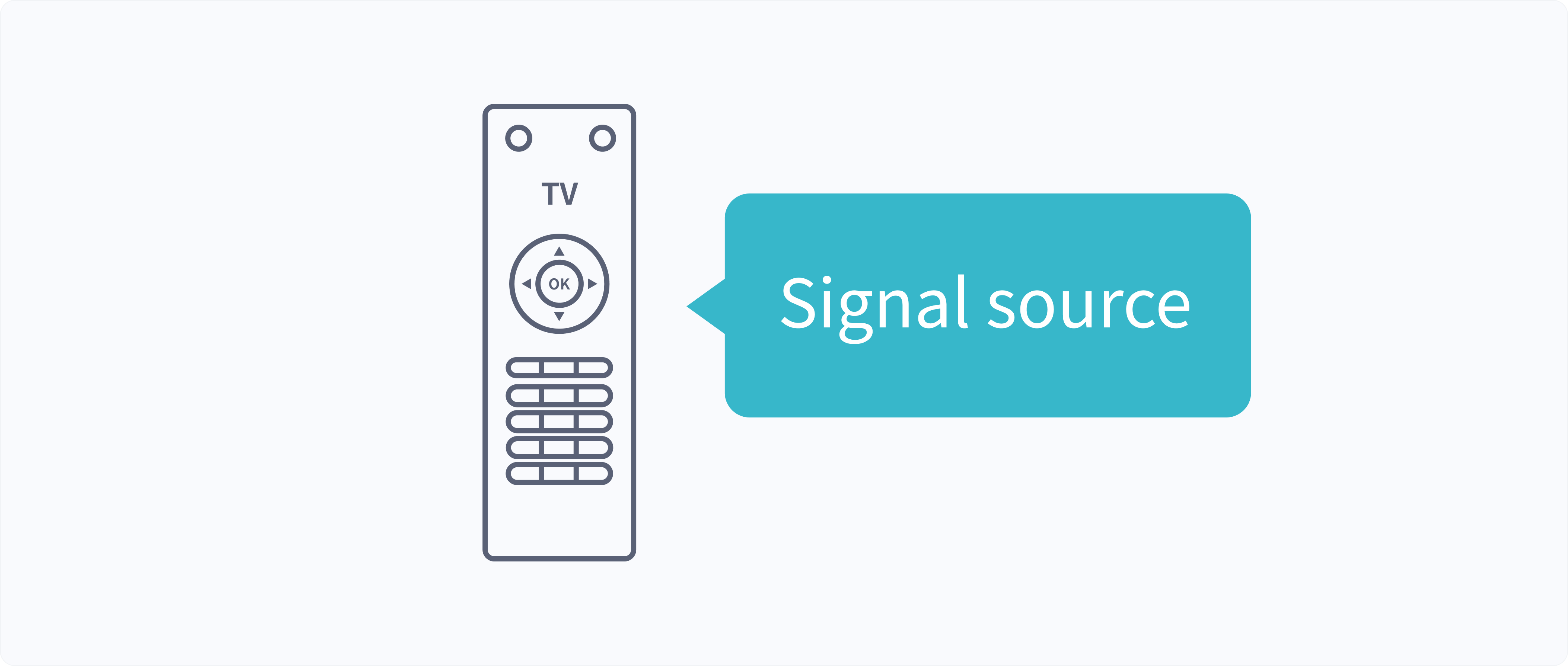

Turn on the power of the TV, it will switch the signal source automatically. If not, please press the "signal source/input source" button on your remote controller and switch it to " HDMI input / AV input " manually.

STEP 2

Wi-Fi Connect

Choose Wi-Fi connection through "Home > setting > internet"
